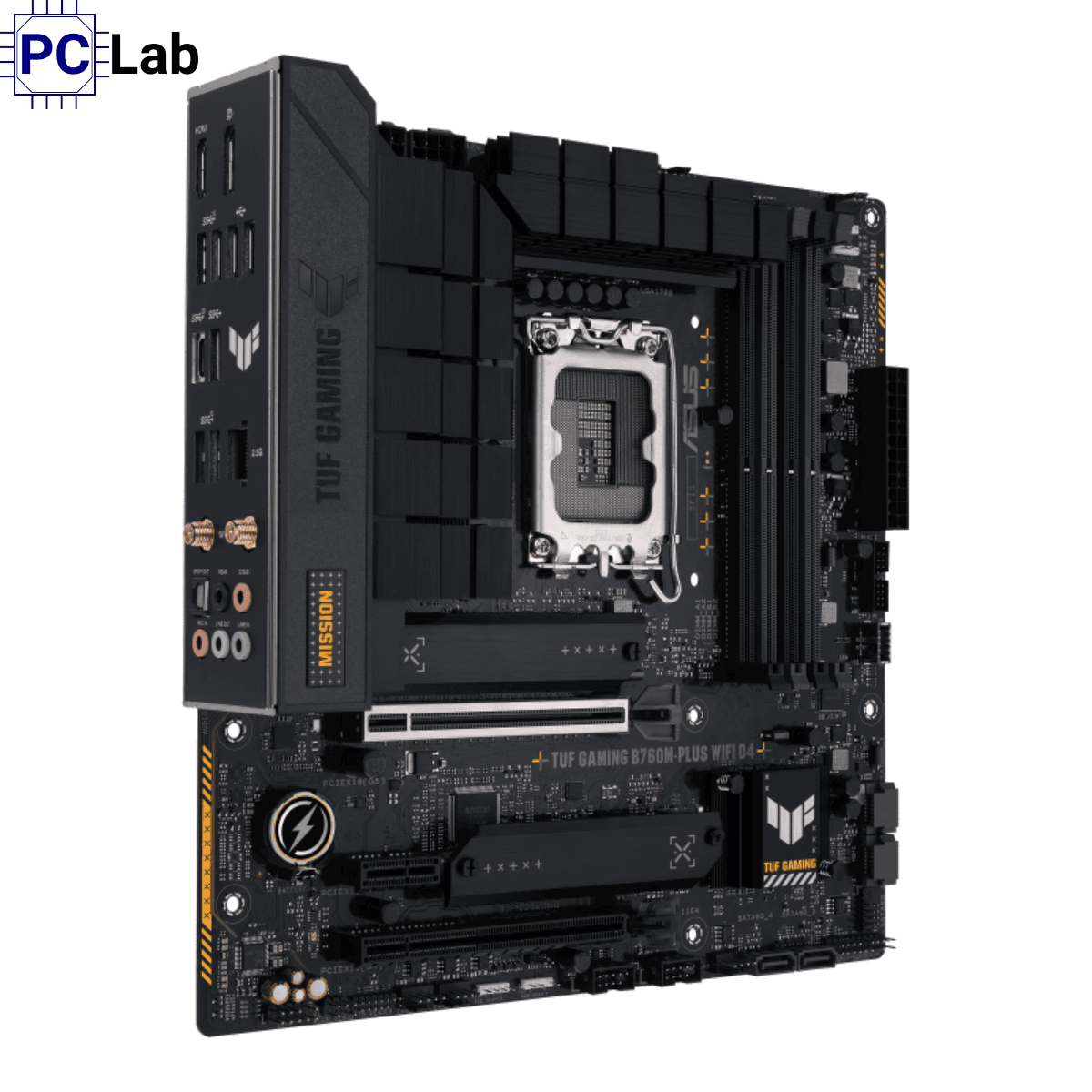

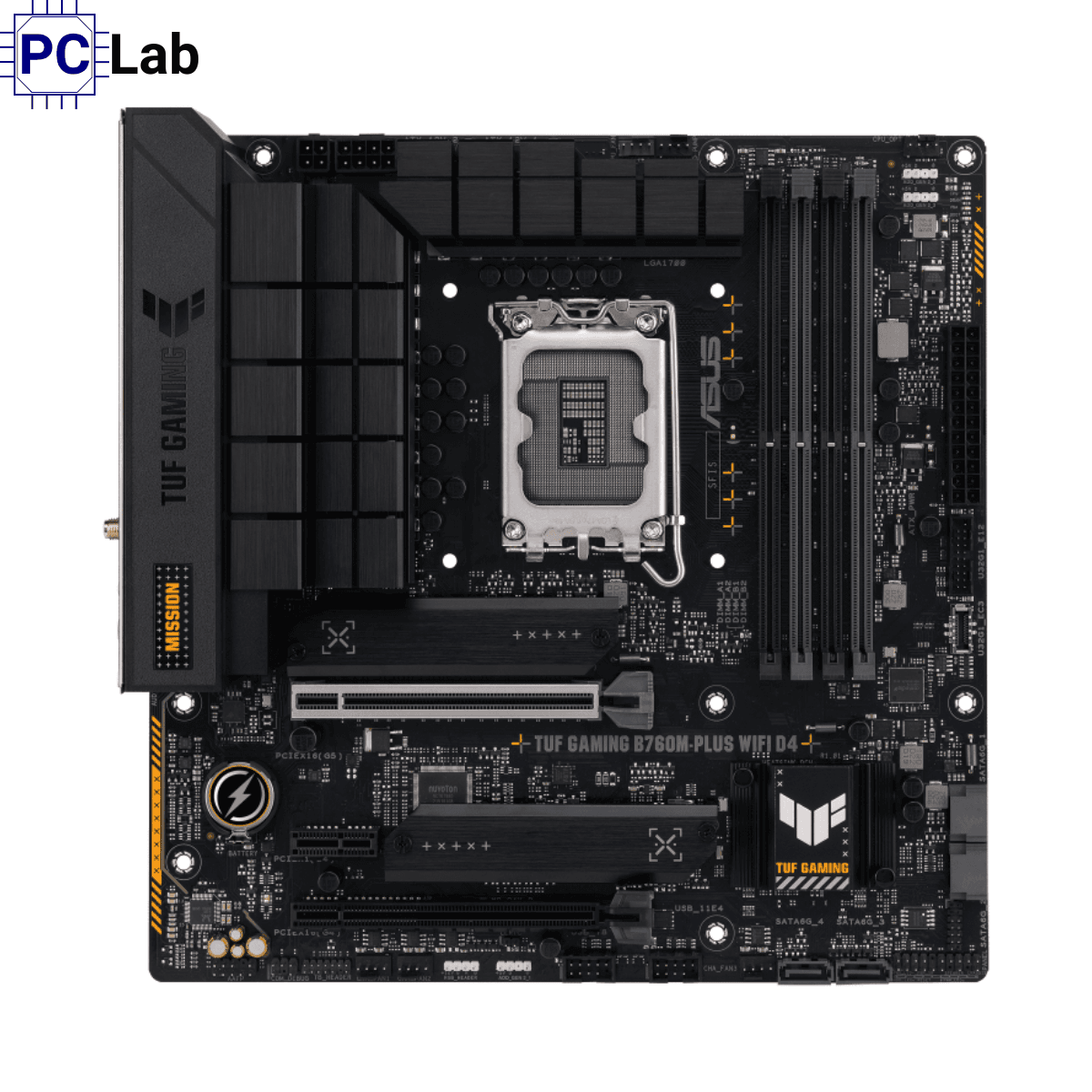

Thông số kỹ thuật Mainboard ASUS TUF Gaming B760M-PLUS WIFI D4 DDR4
| Hạng mục | Thông số chi tiết |
|---|---|
| Model | TUF GAMING B760M-PLUS WIFI D4 |
| CPU | Intel LGA1700 Hỗ trợ Intel Core thế hệ 14, 13, 12, Pentium Gold, Celeron Hỗ trợ Intel Turbo Boost Technology 2.0 & Turbo Boost Max Technology 3.0 |
| Chipset | Intel B760 |
| Bộ nhớ | 4 x DIMM, tối đa 128GB, DDR4 2133–5333(OC) Non-ECC, Un-buffered Dual Channel Hỗ trợ Intel XMP & OptiMem II |
| Đồ họa | 1 x DisplayPort (4K@60Hz) 1 x HDMI® (4K@60Hz) |
| Khe cắm mở rộng | CPU: 1 x PCIe 5.0 x16 B760: 1 x PCIe 4.0 x16 (x4), 1 x PCIe 4.0 x1 |
| Lưu trữ | 2 x M.2 (Key M, 2242/2260/2280, PCIe 4.0 x4) 4 x SATA 6Gb/s Hỗ trợ Intel Rapid Storage RAID 0/1/5/10 |
| Ethernet | 1 x Realtek 2.5Gb, TUF LANGuard |
| Wi-Fi & Bluetooth | Wi-Fi 6 2×2 (802.11 a/b/g/n/ac/ax), 2.4/5GHz Bluetooth v5.2 |
| USB (Mặt sau) | 1 x USB 3.2 Gen 2×2 Type-C 4 x USB 3.2 Gen 2 Type-A 1 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 Type-A 1 x DisplayPort, 1 x HDMI®, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet, 5 x Audio jacks, 1 x Optical S/PDIF out |
| USB (Mặt trước) | 1 x USB 3.2 Gen 1 Type-C 1 x USB 3.2 Gen 1 header (2 cổng) 2 x USB 2.0 headers (4 cổng) |
| Âm thanh | Realtek 7.1 HD Audio CODEC, hỗ trợ 24-Bit/192 kHz Audio shielding, tụ cao cấp, PCB âm thanh chuyên dụng |
| Đầu nối I/O nội bộ | CPU Fan, OPT CPU Fan, AIO Pump, 3 x Chassis Fan 24-pin Main Power, 8-pin +12V, 4-pin +12V 2 x M.2, 4 x SATA 6Gb/s USB: 1 x USB 3.2 Gen 1 Type-C, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers 3 x Addressable Gen2, AURA RGB, Clear CMOS, Front Audio, Front Panel System, Thunderbolt™ (USB4®) |
| Tính năng đặc biệt | ASUS TUF Protection (DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-steel I/O) ASUS Q-Design (Q-Latch M.2, Q-DIMM, Q-LED, Q-Slot) ASUS Thermal Solution (M.2 heatsink, VRM heatsink) ASUS EZ DIY (CPU Socket Protection, ProCool, Pre-mounted I/O shield, SafeDIMM) Aura Sync (RGB Addressable Gen2) |
| Phần mềm | Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving, 2-way Noise Cancellation), AI Suite 3, DIGI+ VRM, PC Cleaner, TUF GAMING CPU-Z, DTS Audio, MyASUS, Norton 360, WinRAR |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, ASUS EZ DIY (CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode) |
| Quản lý | WOL by PME, PXE |
| Phụ kiện | 2 x SATA 6Gb/s, 1 x Wi-Fi ASUS antenna, 1 x M.2 rubber package, 1 x screw package, 1 x TUF Gaming sticker, Quick Start Guide, TUF Certificate |
| Hệ điều hành | Windows 11, Windows 10 64-bit |
| Form Factor | mATX, 9.6 x 9.6 inch (24.4 x 24.4 cm) |
