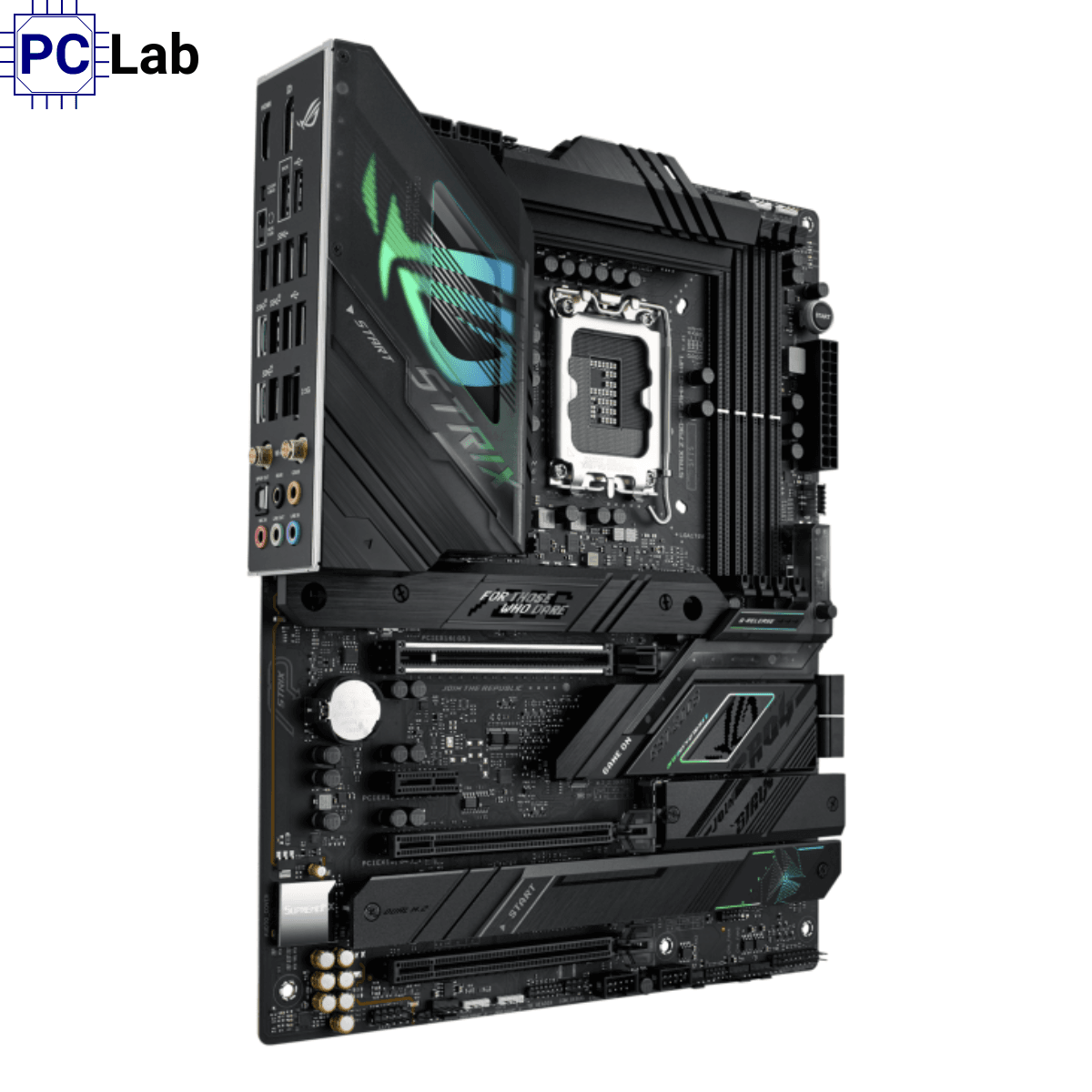

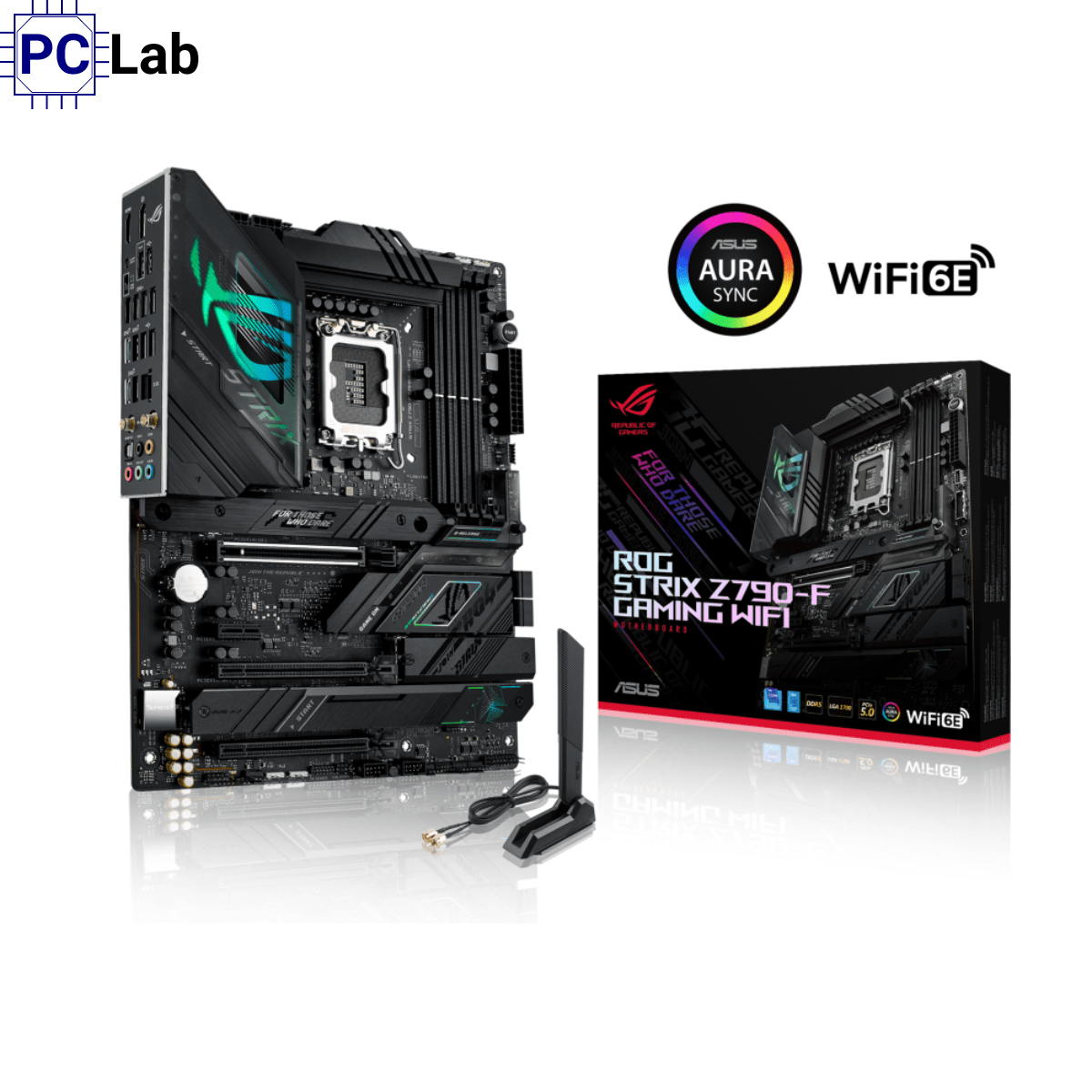

Thông số kỹ thuật Mainboard ASUS ROG STRIX Z790-F GAMING WIFI DDR5
| Hạng mục | Thông số |
|---|---|
| Model | ROG STRIX Z790-F GAMING WIFI II DDR5 |
| CPU Hỗ trợ | Intel® Core™ 14th & 13th Gen, Intel® Core™ 12th Gen, Pentium® Gold, Celeron® Supports Intel® Turbo Boost 2.0 & Turbo Boost Max 3.0** |
| Socket | LGA1700 |
| Bộ chip | Intel® Z790 |
| Bộ nhớ | 4 x DIMM DDR5, Max 192GB Hỗ trợ OC 4800–7800+ MHz Dual Channel, XMP, OptiMem II, On-Die ECC |
| Đồ họa tích hợp | 1 x DisplayPort (8K@60Hz) 1 x HDMI 2.1 (4K@60Hz) |
| Khe cắm mở rộng | 1 x PCIe 5.0 x16 (CPU) 2 x PCIe 4.0 x16 (Chipset, x4 mode) 1 x PCIe 3.0 x1 |
| Lưu trữ | Intel® CPU: 1 x M.2_1 (PCIe 4.0 x4) Chipset: 3 x M.2 (PCIe 4.0 x4 / SATA), 4 x SATA 6Gb/s Supports Intel® Rapid Storage Technology & RAID 0/1/5/10 |
| Ethernet | 1 x Intel® 2.5Gb LAN, ASUS LANGuard |
| Wi-Fi & Bluetooth | Wi-Fi 6E 2×2 (802.11 a/b/g/n/ac/ax, 2.4/5/6GHz) Bluetooth v5.3 |
| USB phía sau | 1 x USB 3.2 Gen 2×2 Type-C 3 x USB 3.2 Gen 2 (2 Type-A + 1 Type-C) 4 x USB 3.2 Gen 1 Type-A 4 x USB 2.0 Type-A |
| USB phía trước | 1 x USB 3.2 Gen 2×2 Type-C (Fast-charge 30W PD) 1 x USB 3.2 Gen 1 header (2 ports) 2 x USB 2.0 headers (4 ports) |
| Âm thanh | ROG SupremeFX 7.1, ALC4080 Impedance sense, Multi-streaming, Front/Rear Jack Retasking Playback 120 dB SNR, Recording 113 dB SNR Supports 32-bit/384 kHz, S/PDIF, Premium capacitors |
| Cổng I/O mặt sau | USB 3.2 Gen 2×2/3.2 Gen 2/3.2 Gen 1/2.0, DisplayPort, HDMI, Wi-Fi Module, LAN 2.5Gb, 5 x Audio jacks, Optical S/PDIF, BIOS FlashBack, Clear CMOS |
| Đầu nối nội bộ | 4-pin CPU Fan x1, CPU OPT Fan x1, AIO Pump x1, Chassis Fan x5 24-pin Main Power x1, 8-pin EPS x2 M.2 x4, SATA x4 USB headers (Type-C / 3.2 Gen 1 / 2.0) 3 x Addressable Gen 2, 1 x Aura RGB, CPU Over Voltage jumper, Front Panel Audio, System Panel, Start Button, Thermal Sensor, Thunderbolt header |
| Các tính năng đặc biệt | Extreme Engine Digi+, 5K Black Metallic Caps ASUS Q-Design (M.2 Q-Latch, PCIe Q-Release, Q-DIMM, Q-LED, Q-Slot) Thermal Solution: VRM & M.2 heatsinks EZ DIY: BIOS FlashBack, Clear CMOS, CPU socket protector, ProCool II, Pre-mounted I/O Shield, SafeSlot, SafeDIMM Aura Sync RGB, USB PD 30W support |
| Phần mềm đi kèm | ROG: GameFirst VI, CPU-Z, Sonic Studio III, Sonic Radar III, DTS Sound Unbound ASUS: Armoury Crate, AIDA64 trial 60d, Aura Creator, Fan Xpert 4 AI, Power Saving, AI Noise Cancellation AI Suite 3, MyASUS, Norton 360, WinRAR UEFI BIOS, AI Overclocking Guide, FlexKey, MemTest86 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Khả năng quản lý | WOL by PME, PXE |
| Phụ kiện đi kèm | 2 x SATA 6Gb/s cables, Thermal pad for M.2, DDR5 fan holder, ASUS Wi-Fi antennas, Cable ties, M.2 backplate Q-Latch, ROG key chain, ROG Strix stickers, Thank you card, 2 x M.2 Rubber packages, M.2 backplate rubber, User guide |
| Hệ điều hành | Windows® 11, Windows® 10 64-bit |
| Form Factor | ATX, 12” x 9.6” (30.5 x 24.4 cm) |
