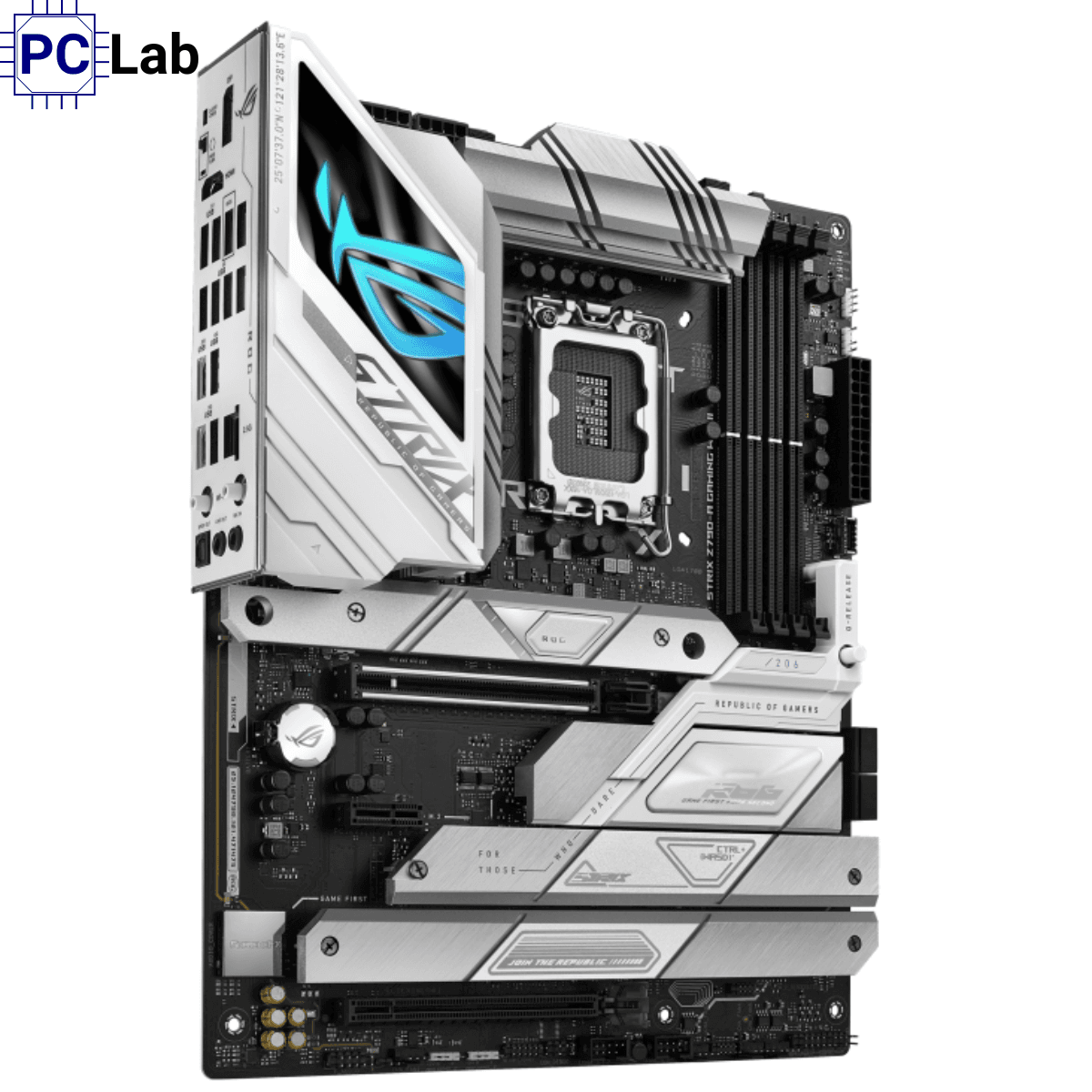

Thông số kỹ thuật Mainboard ASUS ROG STRIX Z790-A GAMING WIFI II DDR5
| Hạng mục | Thông số |
|---|---|
| Model | ROG STRIX Z790-A GAMING WIFI II |
| CPU Hỗ trợ | Intel® Core™ Gen 14th / 13th / 12th, Pentium® Gold, Celeron® Supports Intel® Turbo Boost 2.0 & Turbo Boost Max 3.0* |
| Socket | LGA1700 |
| Bộ chip | Intel® Z790 |
| Bộ nhớ | 4 x DIMM DDR5, Max 192GB OC: 4800–8000+ MHz Dual Channel, XMP, OptiMem II, DIMM Flex, AEMP II, On-Die ECC |
| Đồ họa tích hợp | 1 x DisplayPort (8K@60Hz) 1 x HDMI 2.1 (4K@60Hz) |
| Khe cắm mở rộng | CPU: 1 x PCIe 5.0 x16 Chipset: 1 x PCIe 4.0 x16 (x4), 1 x PCIe 3.0 x1 |
| Lưu trữ | 5 x M.2 (4.0 / 4.0 & SATA) 4 x SATA 6Gb/s Supports Intel® RST RAID 0/1/5/10 |
| Ethernet | Intel® 2.5Gb LAN, ASUS LANGuard |
| Wi-Fi & Bluetooth | Intel® Wi-Fi 7 (802.11be, 2×2, 160MHz, up to 2.4Gbps) Bluetooth v5.4 |
| USB phía sau | 1 x USB 20Gbps Type-C 3 x USB 10Gbps (2 Type-A + 1 Type-C) 4 x USB 5Gbps (Type-A) 4 x USB 2.0 (Type-A) |
| USB phía trước | 1 x USB 20Gbps Type-C (PD 30W) 1 x USB 5Gbps header (2 ports) 2 x USB 2.0 headers (4 ports) |
| Âm thanh | ROG SupremeFX 5.1, ALC4080 Impedance sense, Multi-streaming, Front/Rear Jack Retasking Playback 120 dB SNR, Recording 110 dB SNR Supports up to 32-bit/384 kHz AMP Savitech SV3H712, Premium capacitors, Optical S/PDIF |
| Cổng I/O mặt sau | USB 20Gbps/10Gbps/5Gbps/2.0, DisplayPort, HDMI, Wi-Fi module, LAN 2.5Gb, 2 x Audio jacks, Optical S/PDIF, BIOS FlashBack, Clear CMOS |
| Đầu nối I/O nội bộ | CPU Fan x1, CPU OPT x1, AIO Pump x1, Chassis Fan x5 24-pin Main Power x1, 8-pin EPS x2 M.2 x5, SATA x4 USB headers (20Gbps, 5Gbps, 2.0) Addressable Gen 2 x3, AURA RGB x1, CPU Over Voltage, Thermal Sensor, Thunderbolt header |
| Các tính năng đặc biệt | Extreme Engine Digi+ (5K Black Metallic Caps) ASUS Q-Design (M.2 Q-Latch, PCIe Q-Release, Q-Antenna, Q-DIMM, Q-LED, Q-Slot) Thermal Solution: M.2 heatsink backplate, VRM heatsink EZ DIY: BIOS FlashBack, Clear CMOS, CPU Socket protector, ProCool II, Pre-mounted I/O Shield, SafeSlot, SafeDIMM Aura Sync RGB, USB PD 30W |
| Phần mềm đi kèm | ROG: CPU-Z, DTS Sound Unbound ASUS: Armoury Crate, AIDA64 trial 60d, Aura Creator, Aura Sync, Fan Xpert 4 AI, GameFirst, Sonic Studio, Two-Way AI Noise Cancellation AI Suite 3, MyASUS, USB Wattage Watcher, Intel Unison, Adobe CC trial, Norton 360 60d, WinRAR |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Khả năng quản lý | WOL by PME, PXE |

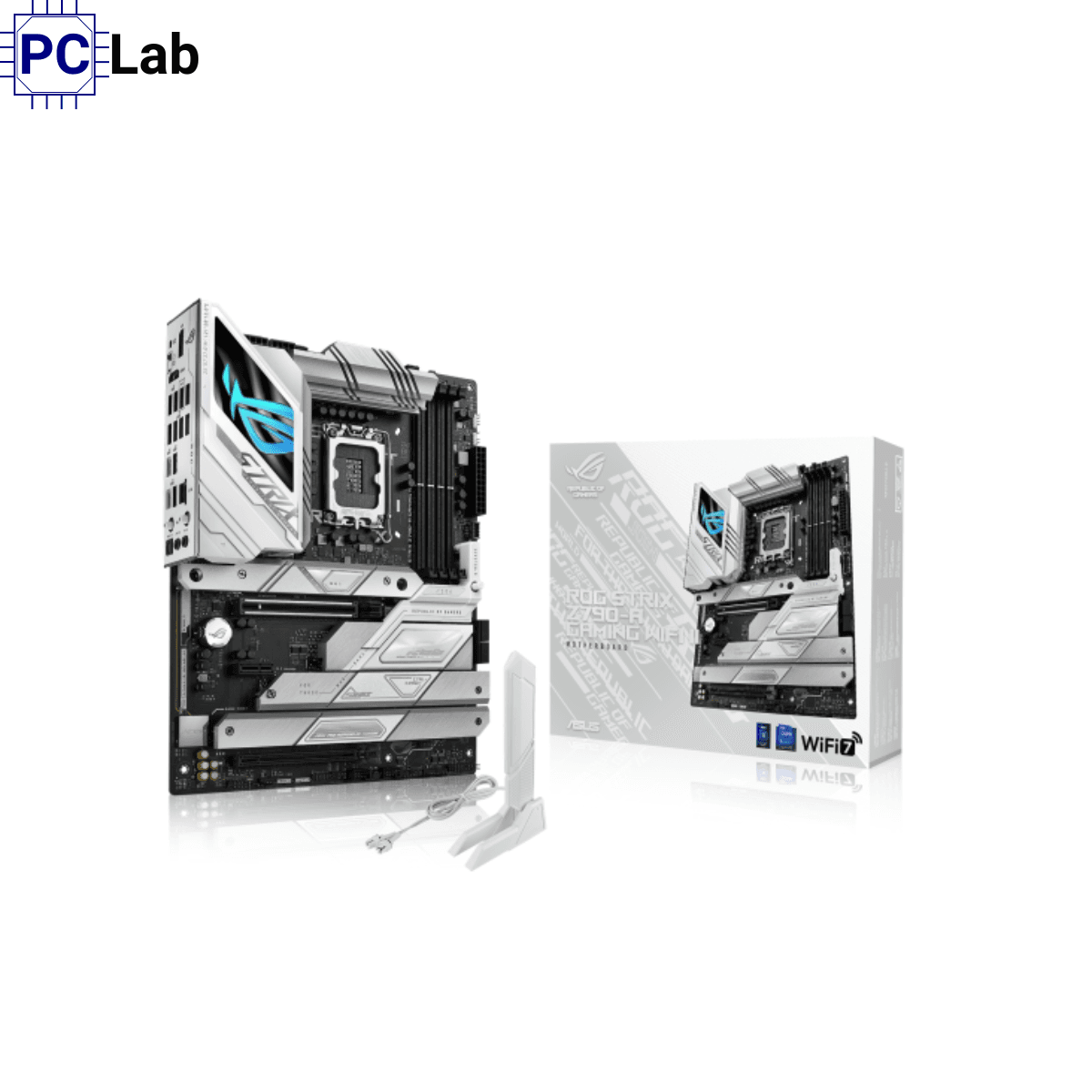

| Phụ kiện đi kèm | 2 x SATA cables, M.2 heatsink, Wi-Fi Q-Antenna, Cable ties, M.2 Q-Latch packages, ROG key chain, Stickers, Rubber kits, Quick Start guide |
| Hệ điều hành | Windows® 11, Windows® 10 64-bit |
| Form Factor | ATX, 12” x 9.6” (30.5 x 24.4 cm) |
