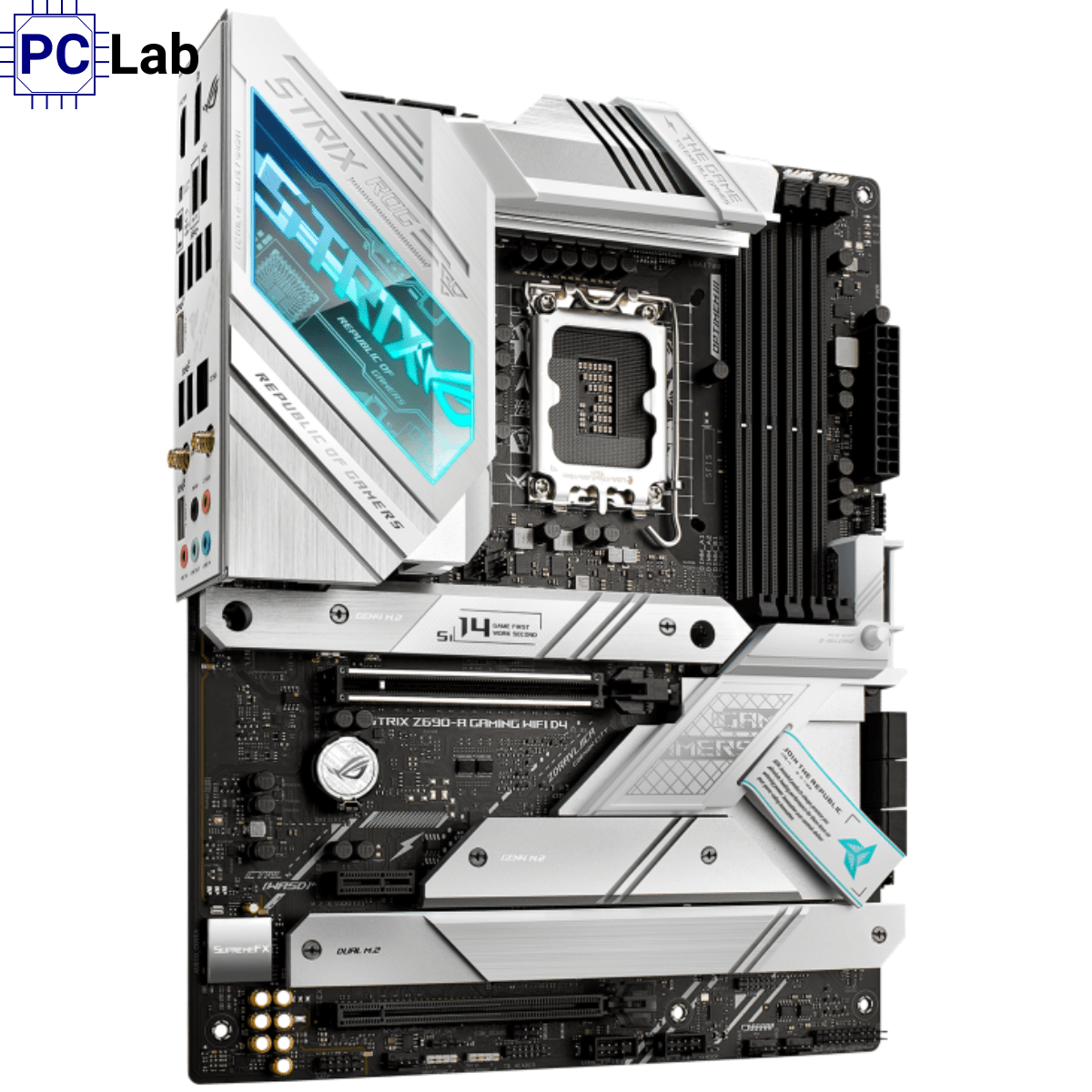

Thông số kỹ thuật Mainboard ASUS ROG STRIX Z690-A GAMING WIFI D4 DDR4
| Hạng mục | Thông tin |
|---|---|
| Model | ROG STRIX Z690-A GAMING WIFI D4 |
| CPU | Socket LGA1700 Hỗ trợ Intel® Core™ thế hệ 12, 13 Pentium® Gold, Celeron® Hỗ trợ Intel® Turbo Boost 2.0 và Turbo Boost Max Technology 3.0 |
| Chipset | Intel® Z690 |
| Bộ nhớ | 4 x DIMM, tối đa 128GB DDR4 5333(O.C.) ~ 2133 MHz Non-ECC, Un-buffered Dual Channel, Hỗ trợ Intel® XMP, OptiMem III |
| Đồ họa tích hợp | 1 x DisplayPort 1.4 (hỗ trợ 8K@60Hz) 1 x HDMI 2.1 (hỗ trợ 4K@60Hz) |
| Khe cắm mở rộng | 1 x PCIe 5.0/4.0/3.0 x16 1 x PCIe 3.0 x16 (chạy x4) 1 x PCIe 3.0 x1 |
| Lưu trữ | 4 x M.2 (Key M, PCIe 4.0 x4 / SATA, tùy khe) 6 x SATA 6Gb/s Hỗ trợ RAID 0/1/5/10 (Intel Rapid Storage Technology, trừ SATA6G_E1-2) |
| Ethernet | Intel® 2.5Gb Ethernet |
| Wi-Fi & Bluetooth | 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), băng tần 2.4/5GHz Bluetooth 5.2 |
| USB (tổng) | Phía sau: 1 x USB 3.2 Gen 2×2 Type-C, 3 x USB 3.2 Gen 2 (2 Type-A + 1 Type-C), 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Phía trước: 1 x USB 3.2 Gen 2×2 Type-C, 1 x USB 3.2 Gen 1 header (tối đa 2 cổng), 2 x USB 2.0 headers (tối đa 4 cổng) |
| Âm thanh | ROG SupremeFX 7.1 HD Audio CODEC ALC4080 Impedance sense cho headphone front/rear Hỗ trợ jack-detection, multi-streaming, front panel jack-retasking 120dB SNR stereo playback, 113dB SNR recording Hỗ trợ 32-Bit/384kHz playback SupremeFX Shielding, Savitech SV3H712 AMP, tụ âm thanh cao cấp, audio cover |
| Cổng I/O phía sau | 1 x USB 3.2 Gen 2×2 Type-C, 3 x USB 3.2 Gen 2 (2 Type-A + 1 Type-C), 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 1 x DisplayPort, 1 x HDMI 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet 5 x Audio jacks 1 x BIOS FlashBack™, 1 x Clear CMOS |
| Đầu nối nội bộ | 1 x CPU Fan (4-pin), 1 x CPU OPT Fan (4-pin), 1 x AIO Pump (4-pin) 5 x Chassis Fan headers (4-pin) 1 x 24-pin Main Power, 2 x 8-pin +12V Power 4 x M.2 slots, 6 x SATA 6Gb/s 1 x USB 3.2 Gen 2×2, 1 x USB 3.2 Gen 1 header (2 cổng), 2 x USB 2.0 headers (4 cổng) 3 x Addressable Gen 2 headers, 1 x AURA RGB header, 1 x Clear CMOS header, 1 x CPU Over Voltage jumper, 1 x Front Panel Audio header, 1 x S/PDIF Out header, 1 x SPI TPM header, 1 x System Panel header, 1 x Thermal Sensor header, 1 x Thunderbolt™ header |
| Tính năng đặc biệt | Extreme Engine Digi+, 5K Black Metallic Capacitors ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED, Q-Slot ASUS Thermal Solution: M.2 heatsink, VRM heatsink, backplate ASUS EZ DIY: BIOS FlashBack™, LED, Clear CMOS, CPU Socket protector ProCool II, Pre-mounted I/O shield, SafeSlot, SafeDIMM AURA Sync: RGB header, Addressable Gen 2 headers, ASUS HYDRANODE |
| Phần mềm | GameFirst VI, ROG CPU-Z, Sonic Studio III + Virtual Mixer + Sonic Suite Companion, Sonic Radar III, DTS Sound Unbound Armoury Crate, AIDA64 Extreme (60 ngày), AURA Creator, AURA Sync, Fan Xpert 4, Two-Way AI Noise Cancelation AI Suite 3 (TPU, EPU, DIGI+ VRM, Turbo app), MyAsus, WinRAR, MemTest86 |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Khả năng quản lý | WOL by PME, PXE |

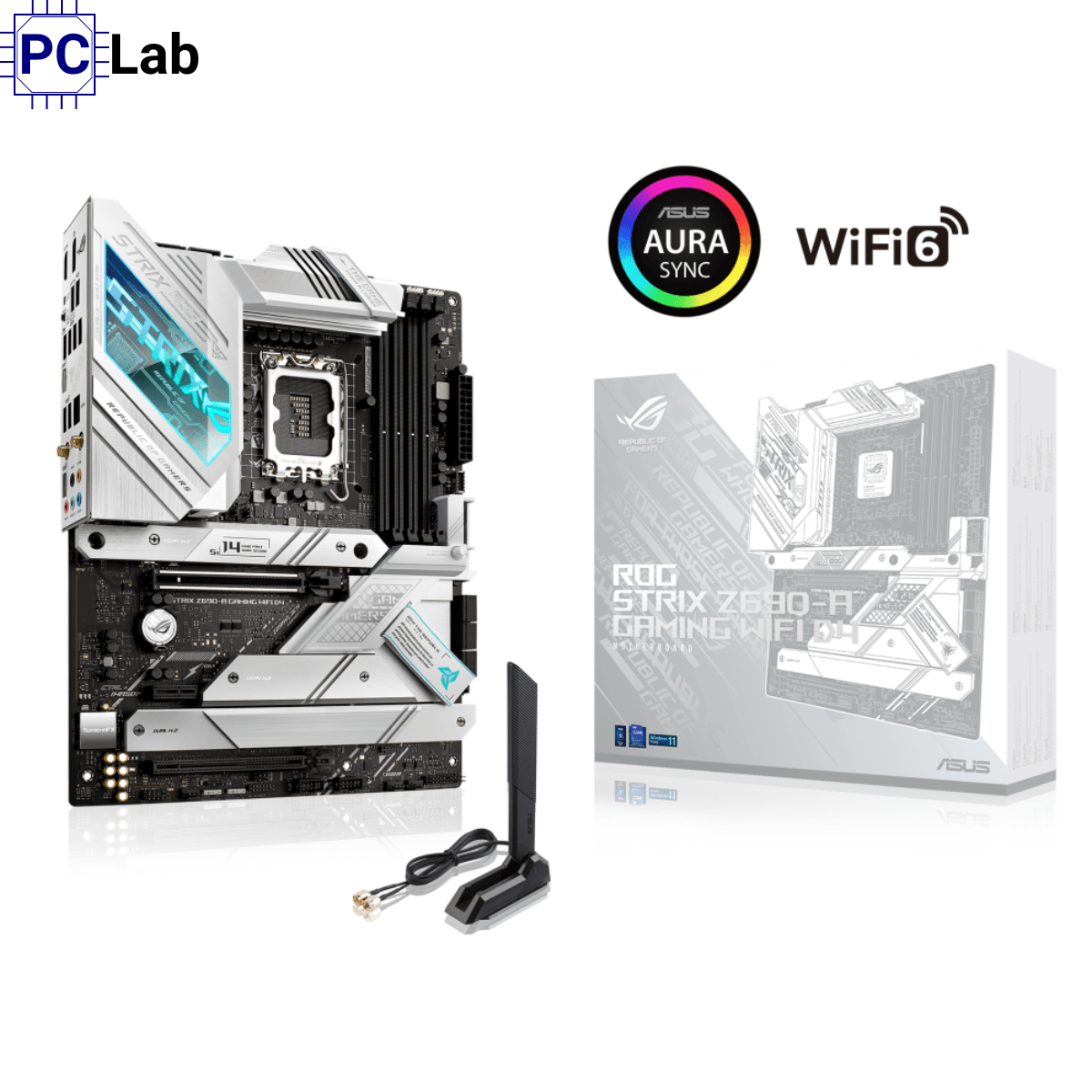

| Phụ kiện | 4 x cáp SATA 6Gb/s, 1 x Wi-Fi antenna, Cable ties, M.2 rubber, M.2 Q-Latch, ROG keychain, ROG stickers, Thank you card, 1 x DVD hỗ trợ, 1 x User guide |
| Kích thước | ATX – 30.5cm x 24.4cm |
