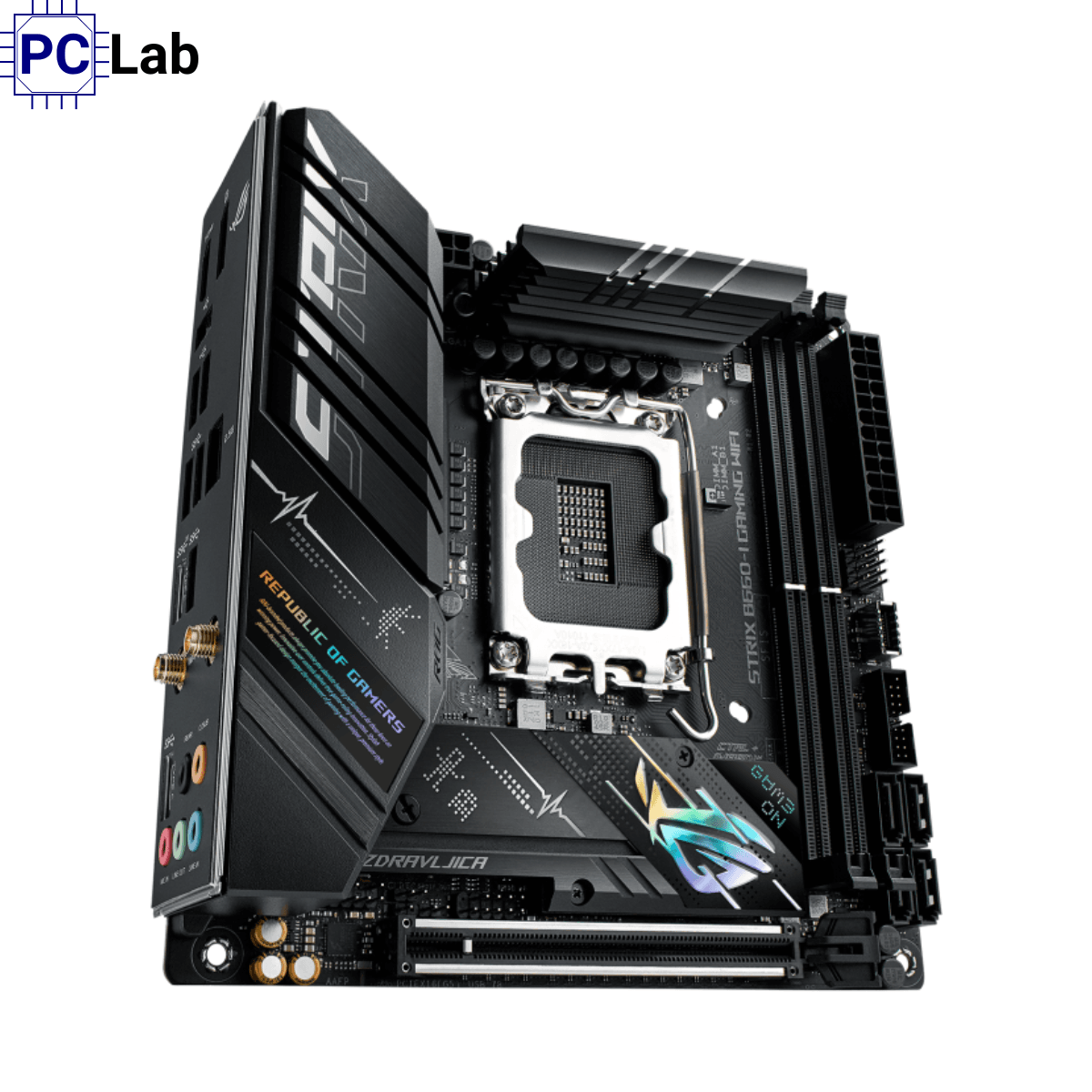

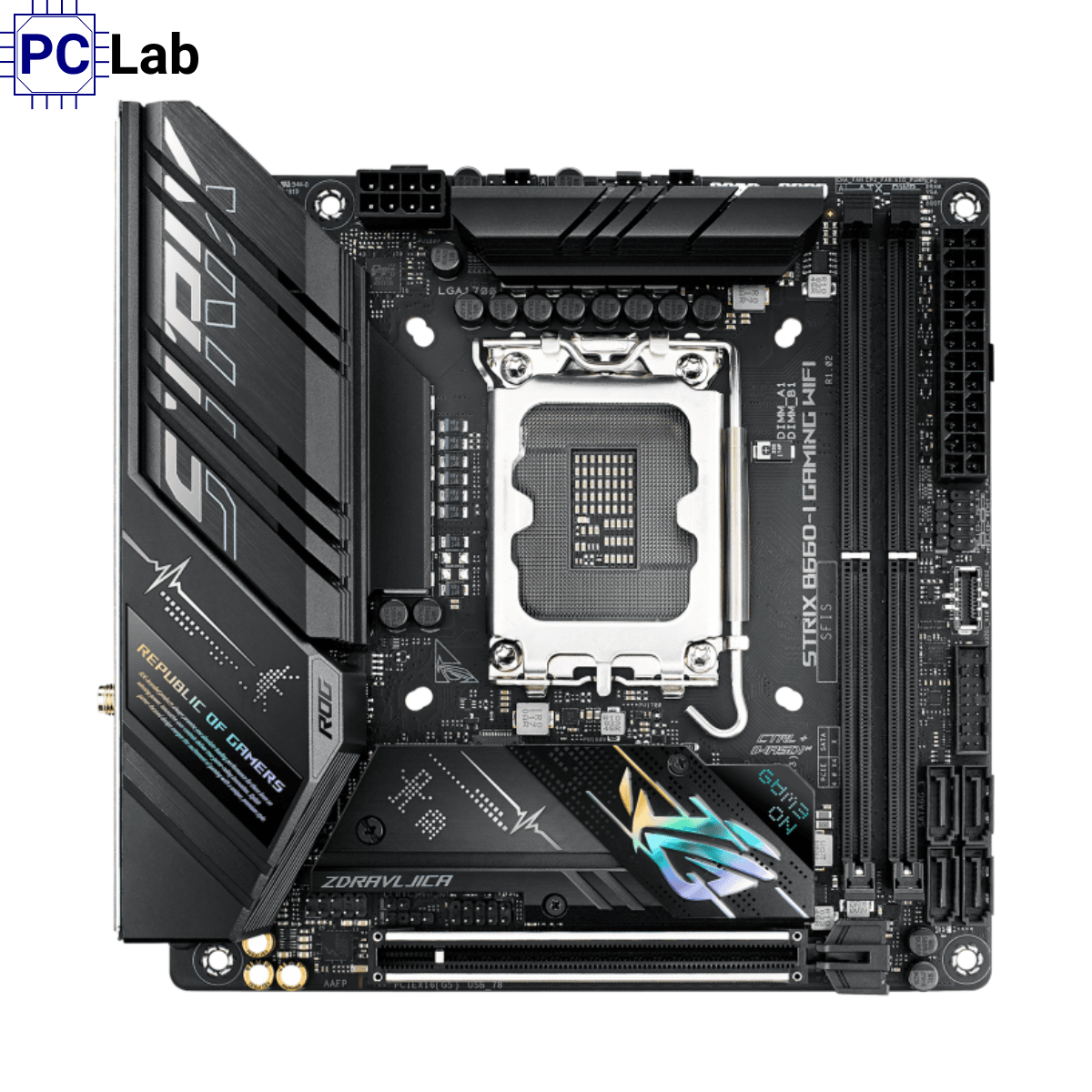

Thông số kỹ thuật Mainboard ASUS ROG STRIX B660-I GAMING WIFI DDR5
| Mục | Thông số |
|---|---|
| Model | ROG STRIX B660-I GAMING WIFI |
| CPU | Socket Intel® LGA1700, hỗ trợ Intel® Core™ 14th & 13th Gen, Intel® Core™ 12th Gen, Pentium® Gold và Celeron® Hỗ trợ Intel® Turbo Boost Technology 2.0 & Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel® B660 |
| Bộ nhớ | 2 x DIMM, tối đa 96GB, DDR5 4800 – 6200(OC), Non-ECC, Un-buffered Hỗ trợ Dual Channel, Intel® XMP, OptiMem II |
| Đồ họa tích hợp | 1 x DisplayPort 1.4 (4K@60Hz), 1 x HDMI 2.1 (4K@60Hz) |
| Khe cắm mở rộng | 1 x PCIe 5.0 x16 |
| Lưu trữ | 2 x M.2 (M.2_1: 2260/2280, PCIe 4.0 x4; M.2_2: 2242/2260/2280, PCIe 4.0 x4) 4 x SATA 6Gb/s Hỗ trợ Intel® Rapid Storage Technology & RAID 0/1/5/10, Intel® Optane Memory H Series |
| Ethernet | 1 x Intel® I225-V 2.5Gb, ASUS LANGuard |
| Wi-Fi & Bluetooth | Wi-Fi 6 (2×2), 2.4/5 GHz, Bluetooth v5.2 |
| USB (mặt sau) | 1 x USB 3.2 Gen 2×2 Type-C 3 x USB 3.2 Gen 1 Type-A + 1 x USB 3.2 Gen 1 Type-C 3 x USB 2.0 Type-A |
| USB (mặt trước / header) | 1 x USB 3.2 Gen 2 Type-C 1 x USB 3.2 Gen 1 header (2 cổng) 1 x USB 2.0 header (2 cổng) |
| Âm thanh | ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A Hỗ trợ jack phát hiện, multi-streaming, front panel jack-retasking 120 dB SNR phát, 113 dB SNR thu, 32-bit/192 kHz playback |
| Cổng I/O mặt sau | 1 x USB 3.2 Gen 2×2 Type-C 4 x USB 3.2 Gen 1 (3 x Type-A + 1 x Type-C) 3 x USB 2.0 1 x HDMI, 1 x DisplayPort 1 x Wi-Fi Module 1 x Ethernet 2.5Gb 5 x Audio jacks |
| Đầu nối I/O nội bộ | Fan: CPU Fan, CPU OPT Fan, AIO Pump (4-pin each) Power: 24-pin, 8-pin +12V Storage: 2 x M.2, 4 x SATA 6Gb/s USB: 1 x USB 3.2 Gen 2, 1 x USB 3.2 Gen 1 (2 ports), 1 x USB 2.0 header (2 ports) Misc: Addressable Gen 2 RGB, AURA RGB, Clear CMOS, Front Panel Audio, S/PDIF, Speaker, System Panel 10-1 pin |
| Tính năng đặc biệt | Extreme Engine Digi+, 5K Black Metallic Capacitors Q-Design: M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot ASUS Thermal: M.2 heatsink ASUS EZ DIY: CPU socket protector, ProCool, Pre-mounted I/O shield, SafeSlot, SafeDIMM AURA Sync: RGB headers |
| Phần mềm | ROG: CPU-Z, GameFirst VI, Sonic Studio III, Sonic Radar III, DTS® Sound Unbound ASUS: Armoury Crate, AIDA64 Extreme, AURA Creator, Fan Xpert 4, Two-Way AI Noise Cancelation AI Suite 3: TurboV EVO, EPU, DIGI+ VRM, Turbo app MyASUS, WinRAR |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, ASUS CrashFree BIOS 3, ASUS EZ Flash 3, UEFI BIOS EZ Mode |
| Khả năng quản lý | WOL by PME, PXE |
| Phụ kiện đi kèm | 2 x SATA cables, 1 x USB2.0 splitter, 1 x Panel cable, Wi-Fi antennas, cable tie, 2 x M.2 screws, M.2 bracket, ROG keychain, stickers, thank you card, Support DVD, User manual |
| Hệ điều hành | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | Mini-ITX, 17 x 17 cm |
