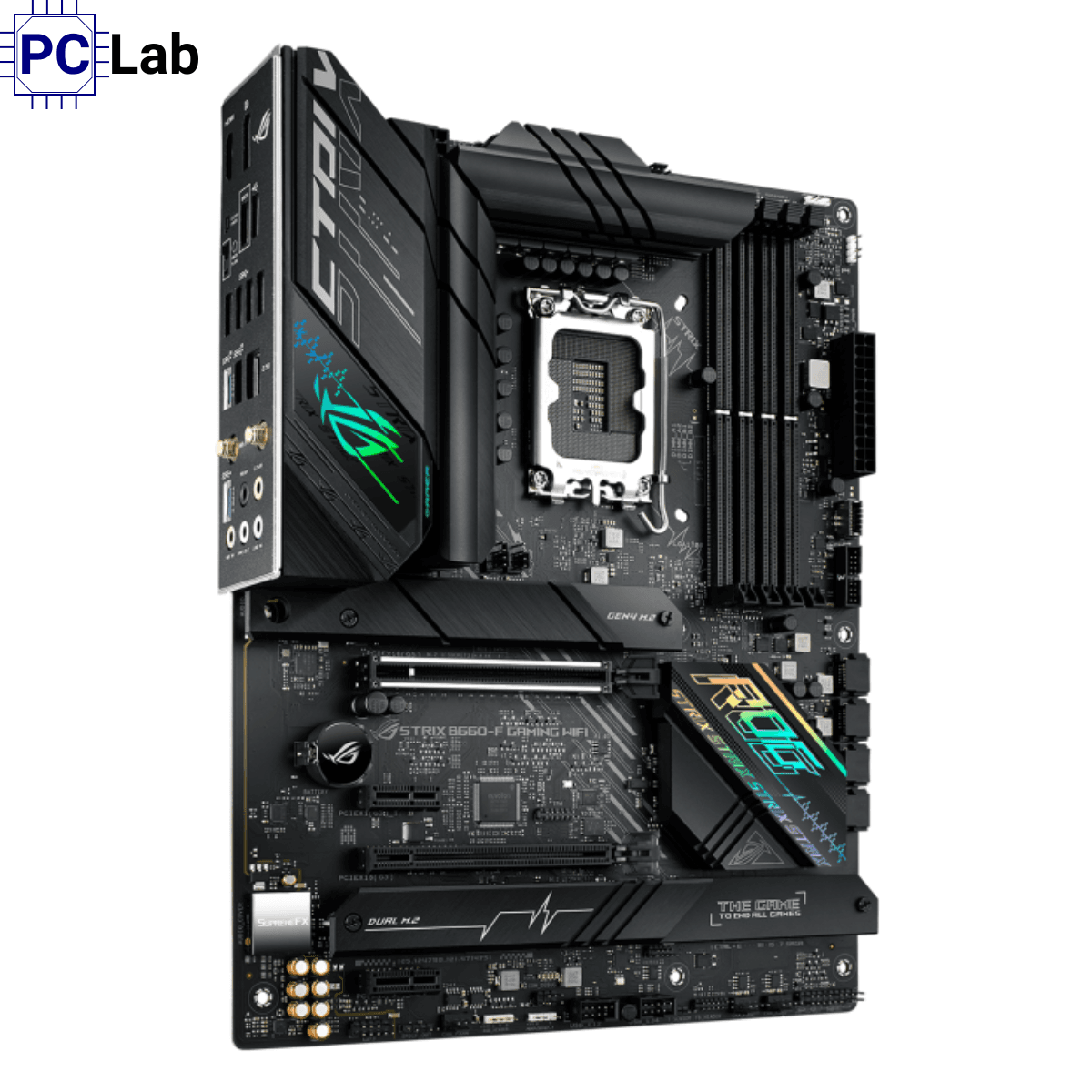

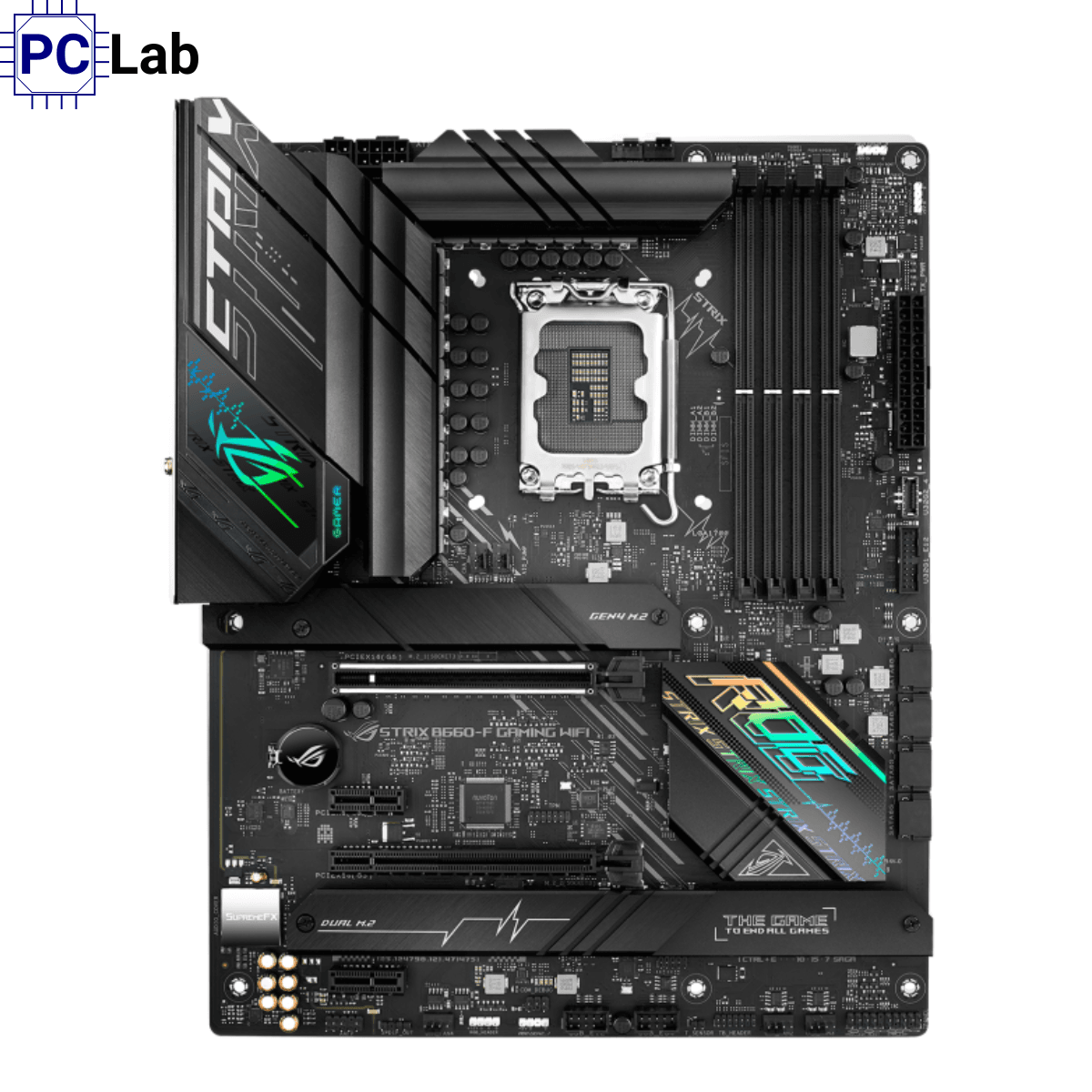

Thông số kỹ thuật Mainboard ASUS ROG STRIX B660-F GAMING WIFI DDR5
| Danh mục | Chi tiết |
|---|---|
| Model | ROG STRIX B660-F GAMING WIFI |
| Socket / CPU Hỗ trợ | Intel LGA1700 – 14th & 13th Gen Core – 12th Gen Core, Pentium Gold, Celeron – Hỗ trợ Intel Turbo Boost 2.0 & Max 3.0* |
| Chipset | Intel B660 |
| RAM Hỗ trợ | 4 x DIMM, Max 196GB – DDR5 6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 – Non-ECC, Un-buffered – Dual Channel, XMP, OptiMem II |
| Đồ họa tích hợp | 1 x DisplayPort, 1 x HDMI 2.1 – DP 1.4: 8K@60Hz, HDMI 2.1: 4K@60Hz |
| Khe cắm mở rộng | – CPU: 1 x PCIe 5.0 x16 – B660 Chipset: 1 x PCIe 3.0 x16 (x4), 2 x PCIe 3.0 x1 *PCIEX16(G3) chia băng thông với PCIEX1(G3) khi sử dụng cùng lúc |
| Lưu trữ | – 3 x M.2 Socket 3 (Key M) • M.2_1: PCIe 4.0 x4 (CPU) • M.2_2: PCIe 4.0 x4 (B660) • M.2_3: PCIe 3.0 x4 (B660) – 4 x SATA 6Gb/s – Hỗ trợ RAID 0/1/5/10, Intel Optane |
| Ethernet / Wi-Fi / Bluetooth | – Intel 2.5Gb Ethernet, ASUS LANGuard – Wi-Fi 6 2×2 (802.11 a/b/g/n/ac/ax), dual-band 2.4/5GHz – Bluetooth v5.2 |
| USB (Back / Front) | Back Panel (9 ports): – 1 x USB 3.2 Gen2x2 Type-C, 1 x USB 3.2 Gen2 Type-A, 5 x USB 3.2 Gen1 (4 Type-A + 1 Type-C), 2 x USB 2.0 – DisplayPort, HDMI, 5 x Audio jacks, BIOS FlashBack, Clear CMOS, Wi-Fi Module, Intel 2.5Gb Ethernet Internal (7 ports): – 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen1 header (thêm 2 cổng), 2 x USB 2.0 header (thêm 4 cổng) |
| Âm thanh | ROG SupremeFX 7.1 HD Audio CODEC ALC4080 – Impedance sense, Jack-detection, Multi-streaming – 120 dB SNR playback, 113 dB SNR recording – Hỗ trợ 32-Bit/384 kHz playback – SupremeFX Shielding, Savitech SV3H712 AMP, Premium caps, Audio cover |
| Cổng kết nối nội bộ | – Fan: 1 x CPU, 1 x CPU OPT, 1 x AIO Pump, 4 x Chassis – Power: 24-pin Main, 8-pin +12V, 4-pin +12V – Storage: 3 x M.2, 4 x SATA 6Gb/s – USB: 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen1 header, 2 x USB 2.0 header – Misc: 3 x Addressable Gen2, 1 x AURA RGB, S/PDIF Out, Front Audio, SPI TPM, System Panel, Thermal Sensor, Thunderbolt header |
| Các tính năng đặc biệt | Extreme Engine Digi+, 5K Black Metallic Caps, ASUS Q-Design (M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot), Thermal Solution (M.2 heatsink + backplate), BIOS FlashBack + LED, CPU Socket Lever Protector, Clear CMOS button, ProCool, Pre-mounted I/O Shield, SafeSlot, SafeDIMM, AURA Sync |
| Phần mềm / Tối ưu hóa | ROG Software: GameFirst VI, CPU-Z, Sonic Studio III + Mixer + Suite Companion, Sonic Radar III, DTS Sound Unbound, Armoury Crate, AURA Creator/Sync, Fan Xpert 4, Two-Way AI Noise Cancelation ASUS AI Suite 3, TurboV EVO, EPU, DIGI+ VRM, MyAsus, WinRAR, UEFI BIOS, MemTest86 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Hệ điều hành | Windows 10 64-bit, Windows 11 64-bit |
| Form Factor / Kích thước | ATX, 12″ x 9.6″ (30.5 cm x 24.4 cm) |
| Phụ kiện đi kèm | 4 x SATA 6Gb/s cables, ASUS Wi-Fi antennas, Cable ties pack, M.2 Rubber Package, 2 x M.2 Q-Latch packages, M.2 backplate Q-Latch, ROG key chain, ROG Strix stickers, ROG Thank You card, Support DVD, User manual |
