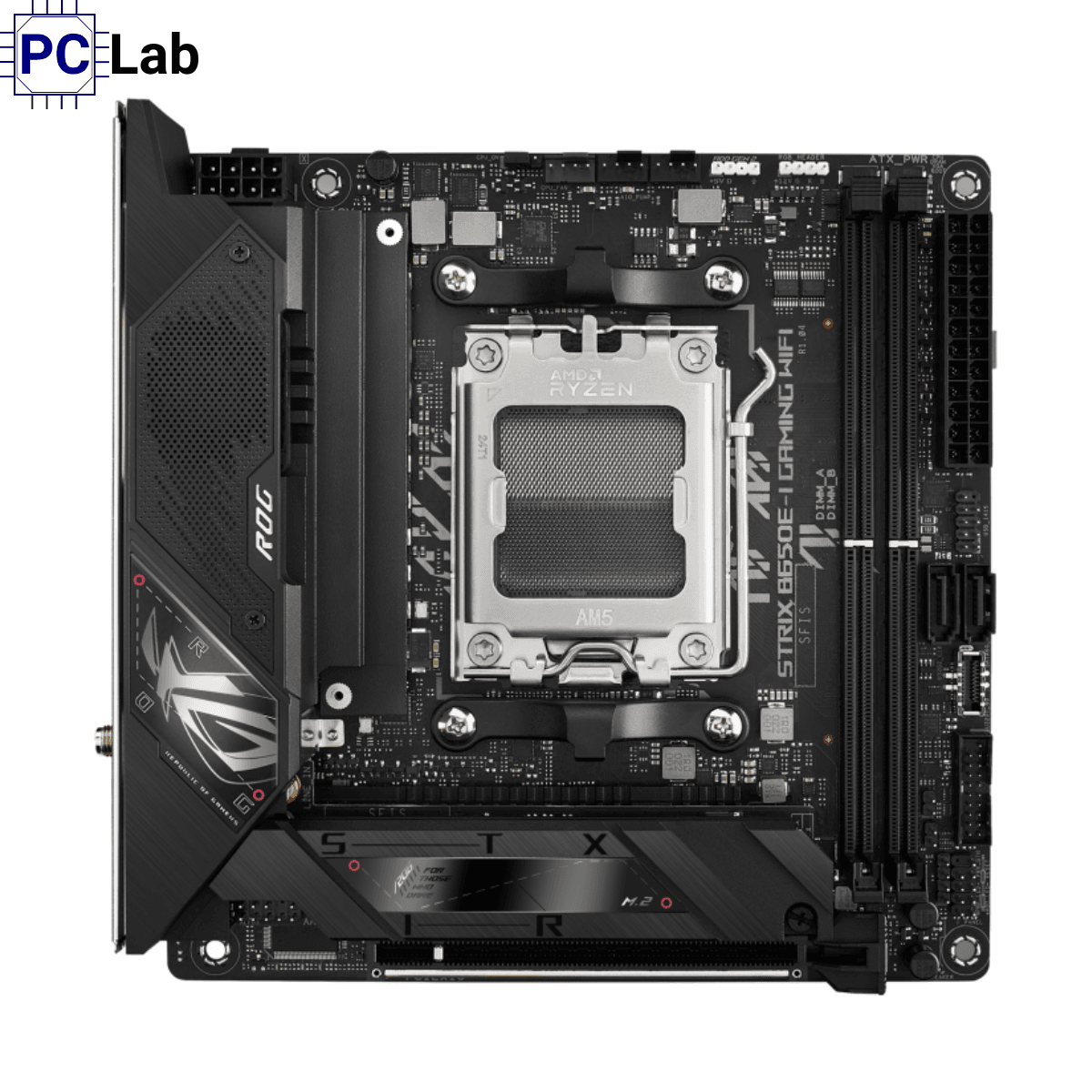

Thông số kỹ thuật Mainboard ASUS ROG STRIX B650E-I GAMING WIFI DDR5
| Hạng mục | Chi tiết |
|---|---|
| Model | ROG STRIX B650E-I GAMING WIFI |
| Socket / CPU Hỗ trợ | AMD Socket AM5 – Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| RAM Hỗ trợ | 2 x DIMM, Max 96GB – DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800/5600/5400/5200/5000/4800 – ECC & Non-ECC, Un-buffered – Dual Channel, AMD EXPO (Overclocking), OptiMem II |
| Đồ họa tích hợp | 1 x HDMI 2.1 (4K@60Hz) 1 x USB 3.2 Gen2 Type-C (DisplayPort Alt Mode, max 8K@60Hz tùy CPU) |
| Khe cắm mở rộng | 1 x PCIe 5.0 x16 (Ryzen 9000 & 7000) |
| Lưu trữ | 2 x M.2 slots • M.2_1: PCIe 5.0 x4 • M.2_2: PCIe 4.0 x4 2 x SATA 6Gb/s – Hỗ trợ RAID PCIe & SATA (RAIDXpert2) |
| Ethernet / Wi-Fi / Bluetooth | – Intel 2.5Gb Ethernet, ASUS LANGuard – Wi-Fi 6E 2×2 (802.11 a/b/g/n/ac/ax), 2.4/5/6GHz – Bluetooth v5.2 |

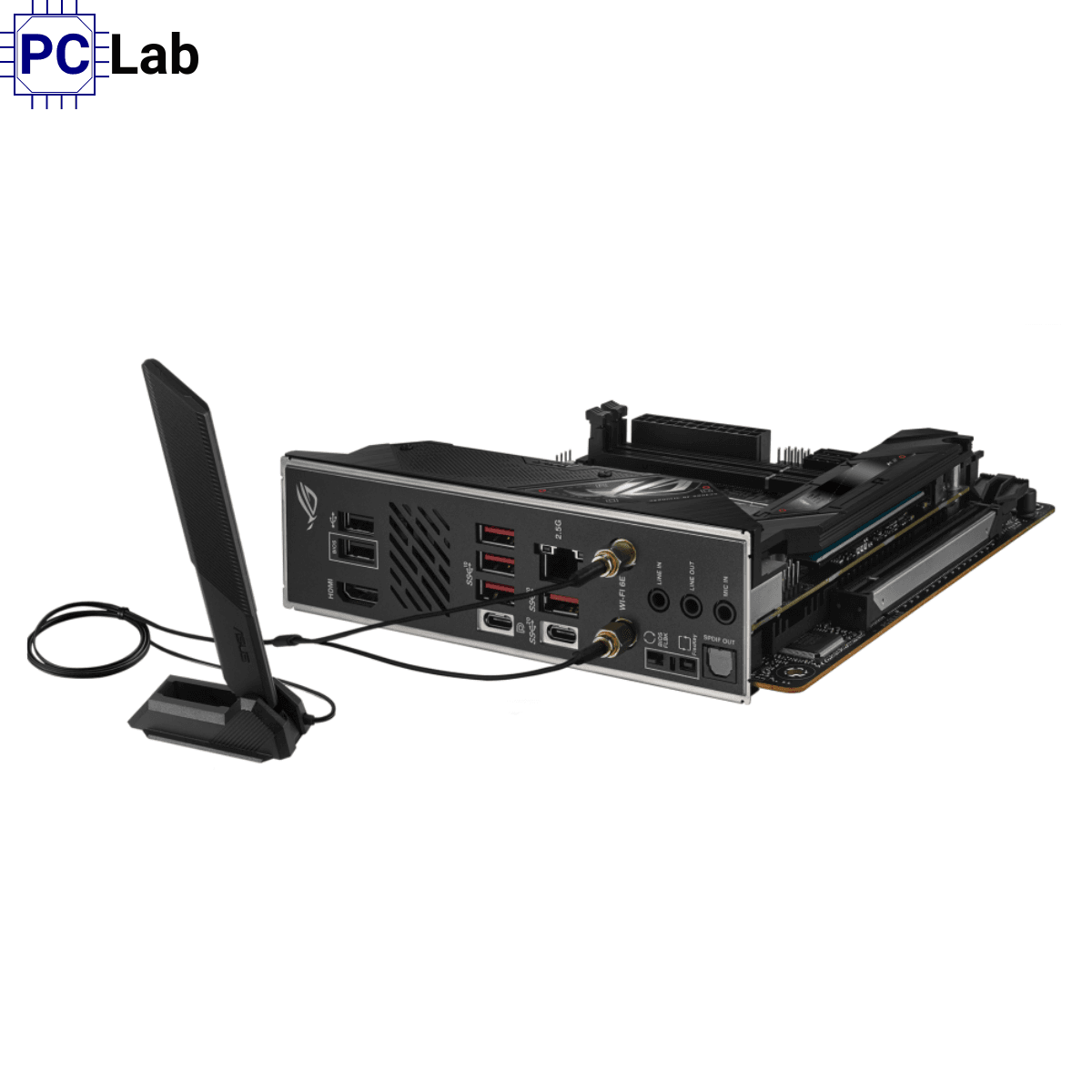

| USB (Back / Front) | Back Panel (8 ports): – 1 x USB 3.2 Gen2x2 Type-C, 5 x USB 3.2 Gen2 (4 Type-A + 1 Type-C DP Alt), 2 x USB 2.0 – HDMI, Wi-Fi Module, Intel 2.5Gb Ethernet, 3 x Audio jacks, Optical S/PDIF, BIOS FlashBack, FlexKey Internal (5 ports): – 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen1 header (thêm 2 cổng), 1 x USB 2.0 header (thêm 2 cổng) |
| Âm thanh | ROG SupremeFX 7.1 HD Audio CODEC ALC4080 – Impedance sense, Jack-detection, Multi-streaming – 120 dB SNR playback, 113 dB SNR recording – Hỗ trợ 32-Bit/384 kHz playback – Audio Shielding, Savitech SV3H712 AMP, LED audio jacks, Rear optical S/PDIF, Premium caps |
| Cổng kết nối nội bộ | – Fan: 1 x CPU, 1 x AIO Pump, 1 x Chassis – Power: 24-pin Main, 8-pin +12V – Storage: 2 x M.2, 2 x SATA 6Gb/s – USB: 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen1 header, 1 x USB 2.0 header – Misc: 1 x Addressable Gen2, 1 x AURA RGB, Clear CMOS, CPU Over Voltage jumper, Front Panel Audio (AAFP), System Panel, Speaker, Thermal Sensor |
| Các tính năng đặc biệt | Extreme Engine Digi+, 5K Black Metallic Caps, ASUS Q-Design (M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot), Thermal Solution (M.2 heatsink + backplate, VRM heatsink), BIOS FlashBack + LED, FlexKey, ProCool, Pre-mounted I/O Shield, SafeSlot, SafeDIMM, AURA Sync |
| Phần mềm / Tối ưu hóa | ROG Software: GameFirst VI, CPU-Z, Sonic Studio III + Mixer + Suite Companion, Sonic Radar III, DTS Sound Unbound, Armoury Crate, AURA Creator/Sync, Fan Xpert 4, Power Saving, Two-Way AI Noise Cancellation ASUS AI Suite 3, TPU, DIGI+ VRM, Turbo App, PC Cleaner, MyAsus, WinRAR, UEFI BIOS, Dynamic OC Switcher |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Hệ điều hành | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor / Kích thước | Mini-ITX, 6.7″ x 6.7″ (17 cm x 17 cm) |
| Phụ kiện đi kèm | 2 x SATA 6Gb/s cables, ROG USB2.0 splitter cable, Panel cable, Additional Cooling Kit, Thermal pad for M.2, ASUS Wi-Fi antennas, Cable ties, M.2 Bracket, M.2 SSD screw package, 2 x M.2 Q-Latch, M.2 backplate rubber, ROG key chain, ROG Strix sticker, ROG Thank You card, User guide |
