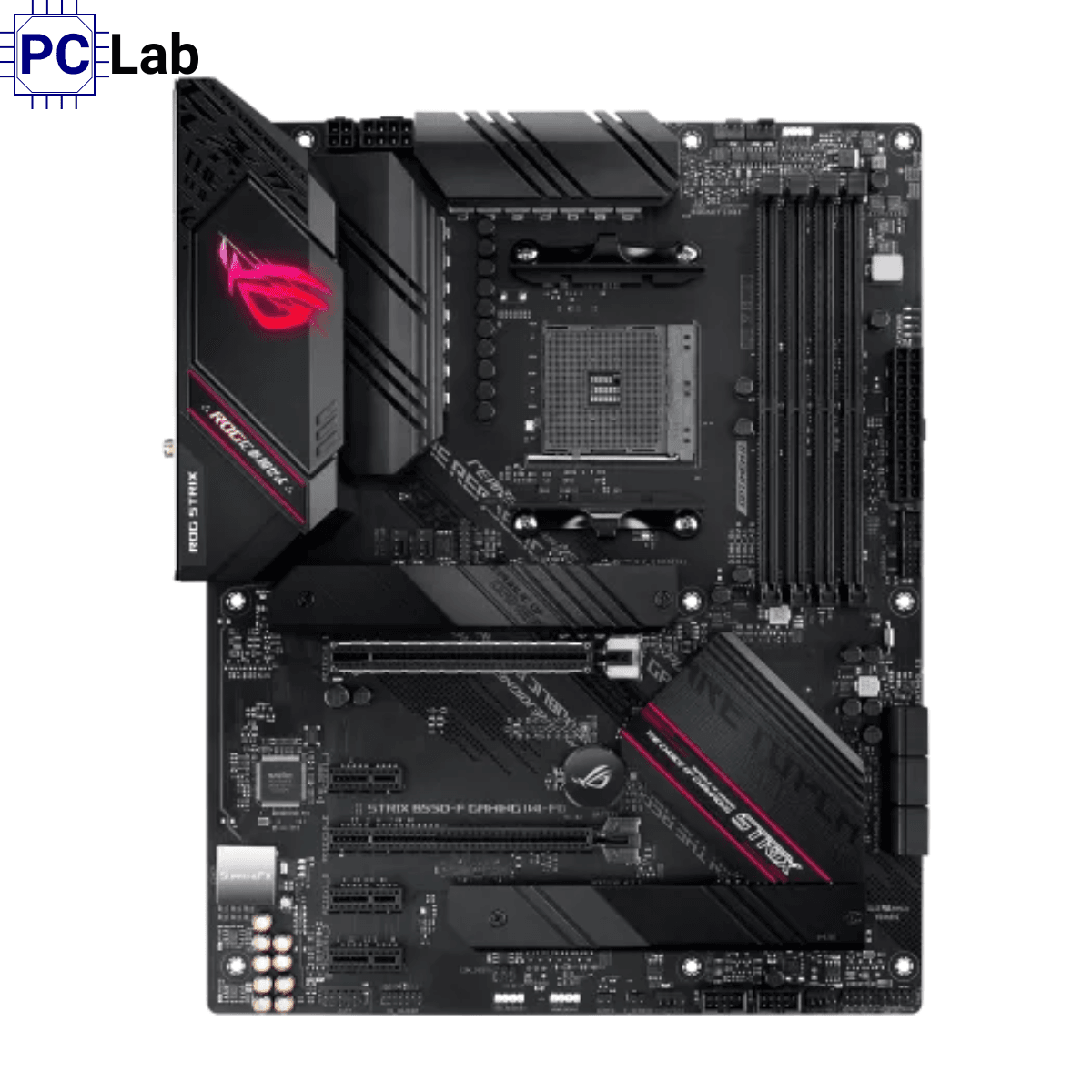

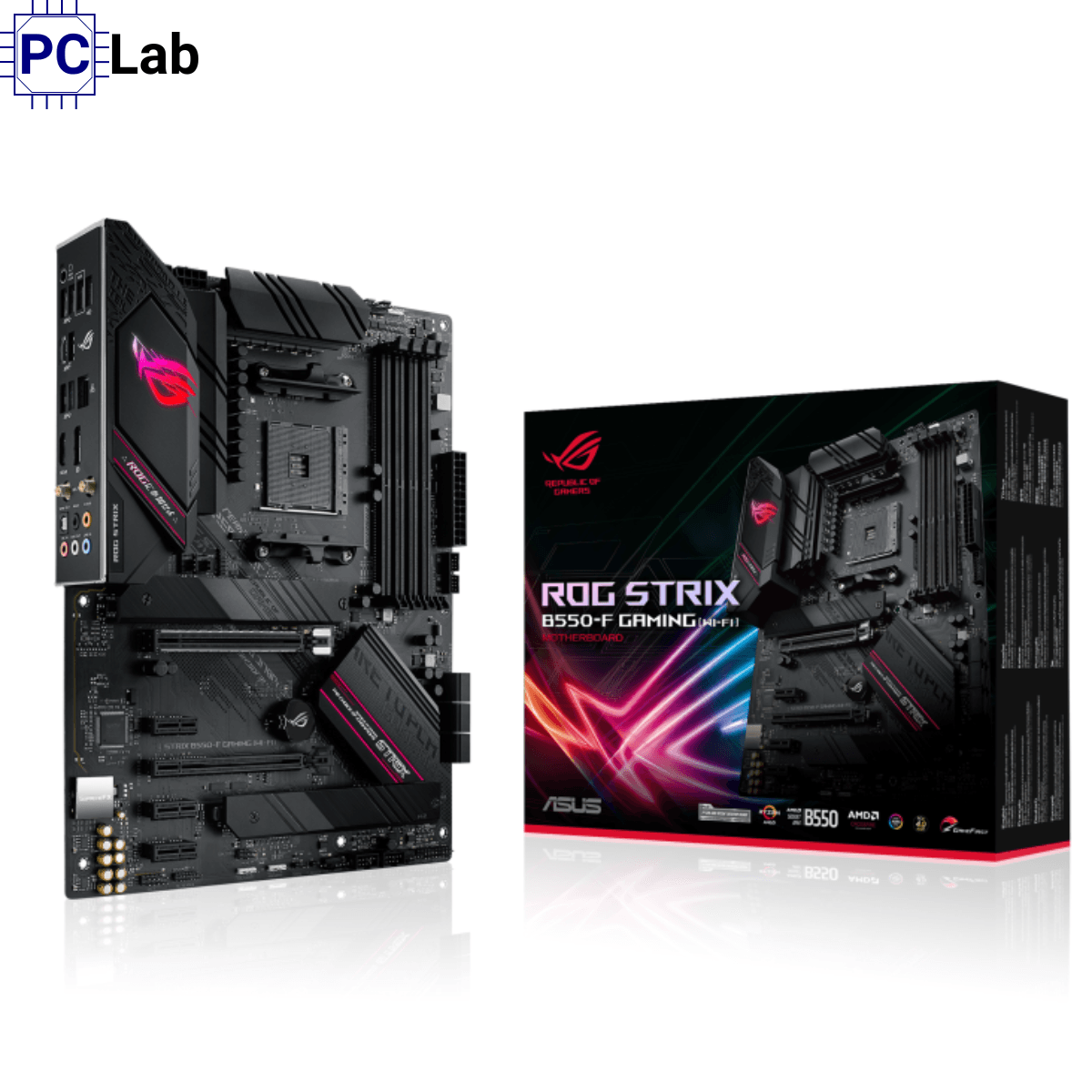

Thông số kỹ thuật Mainboard ASUS ROG STRIX B550-F GAMING (WI-FI) DDR4
| Danh mục | Chi tiết |
|---|---|
| Model | ROG STRIX B550-F GAMING (WIFI) |
| Socket / CPU Hỗ trợ | AM4 – 3rd Gen Ryzen™ / Ryzen™ with Radeon™ Vega Graphics / 1st Gen Ryzen™ |
| Chipset | AMD B550 |
| RAM Hỗ trợ | 4 x DIMM, Max 128GB – DDR4 4400(O.C)/4133(O.C)/4000(O.C)/3866/3600/3466/3200/3000/2800/2666/2400/2133 MHz – Un-buffered |
| Đồ họa tích hợp | VGA onboard (bằng CPU tích hợp Radeon™ Vega) |
| Âm thanh | ROG SupremeFX 7.1-Channel HD Audio CODEC S1220A |
| Mạng / Wi-Fi / Bluetooth | – Intel® I225-V 2.5Gb Ethernet – Intel® Wi-Fi 6 AX200 2×2 (802.11 a/b/g/n/ac/ax) – Dual band 2.4/5 GHz, HT20/40/80/160, MU-MIMO, 1024QAM – Bluetooth v5.1 (Windows 10 build 19041+) |
| Lưu trữ / Khe cắm trong | – 2 x M.2 Socket 3 (2242/2260/2280/22110) • M.2_1: SATA & PCIe 4.0 x4 (3rd Gen Ryzen) • M.2_2: SATA & PCIe 3.0 x4 (B550 chipset) – 6 x SATA 6Gb/s – Hỗ trợ RAID 0, 1, 10 |
| Cổng giao tiếp ngoài (Back Panel) | – 1 x Intel® I225-V 2.5Gb Ethernet – 1 x DisplayPort, 1 x HDMI – 2 x USB 3.2 Gen2 (1 Type-A + 1 Type-C), 4 x USB 3.2 Gen1, 2 x USB 2.0 – 1 x Optical S/PDIF out – 5 x Audio jack – 1 x BIOS FlashBack Button – ASUS Wi-Fi module (802.11 a/b/g/n/ac + Bluetooth v5.0) |
| Form Factor / Kích thước | ATX |
