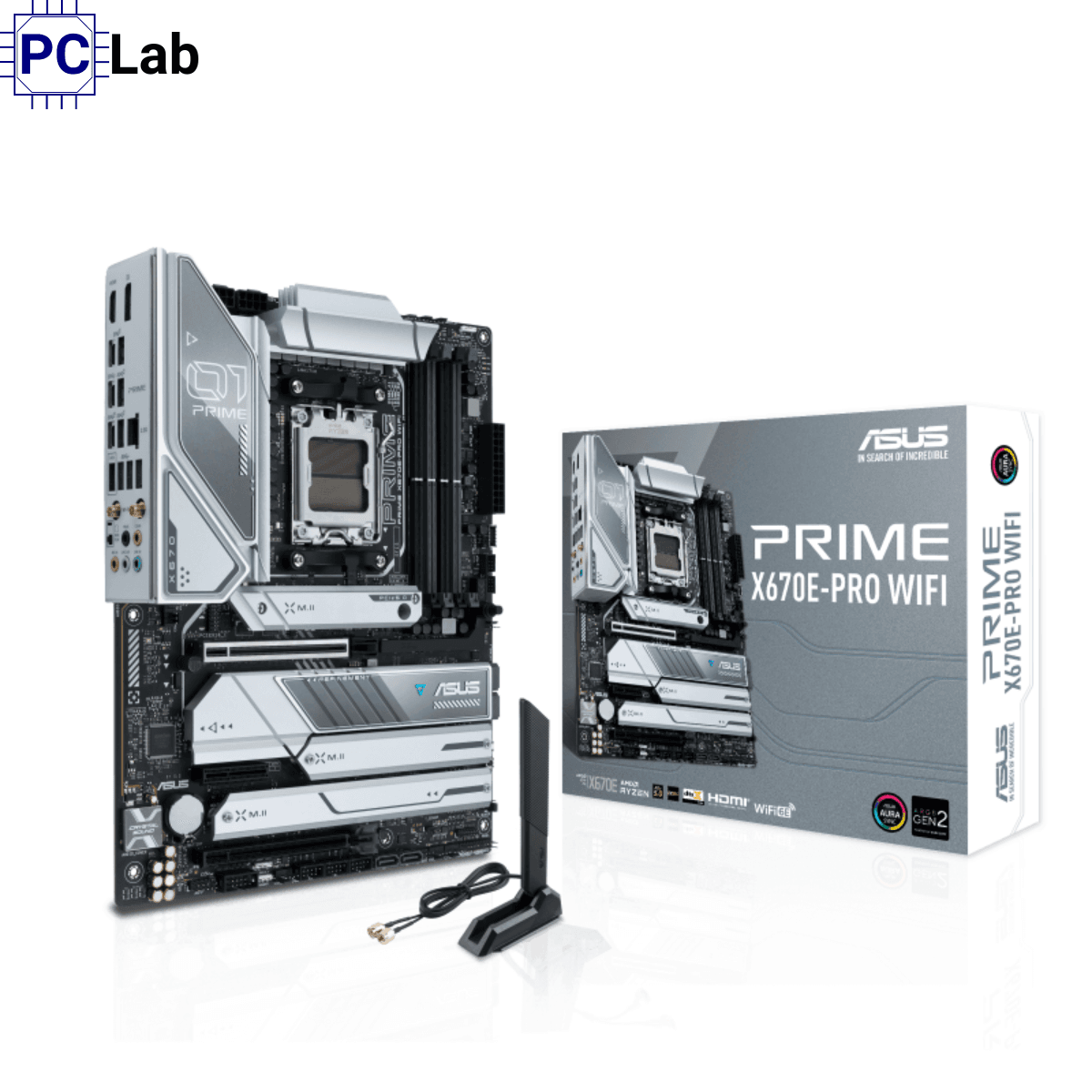

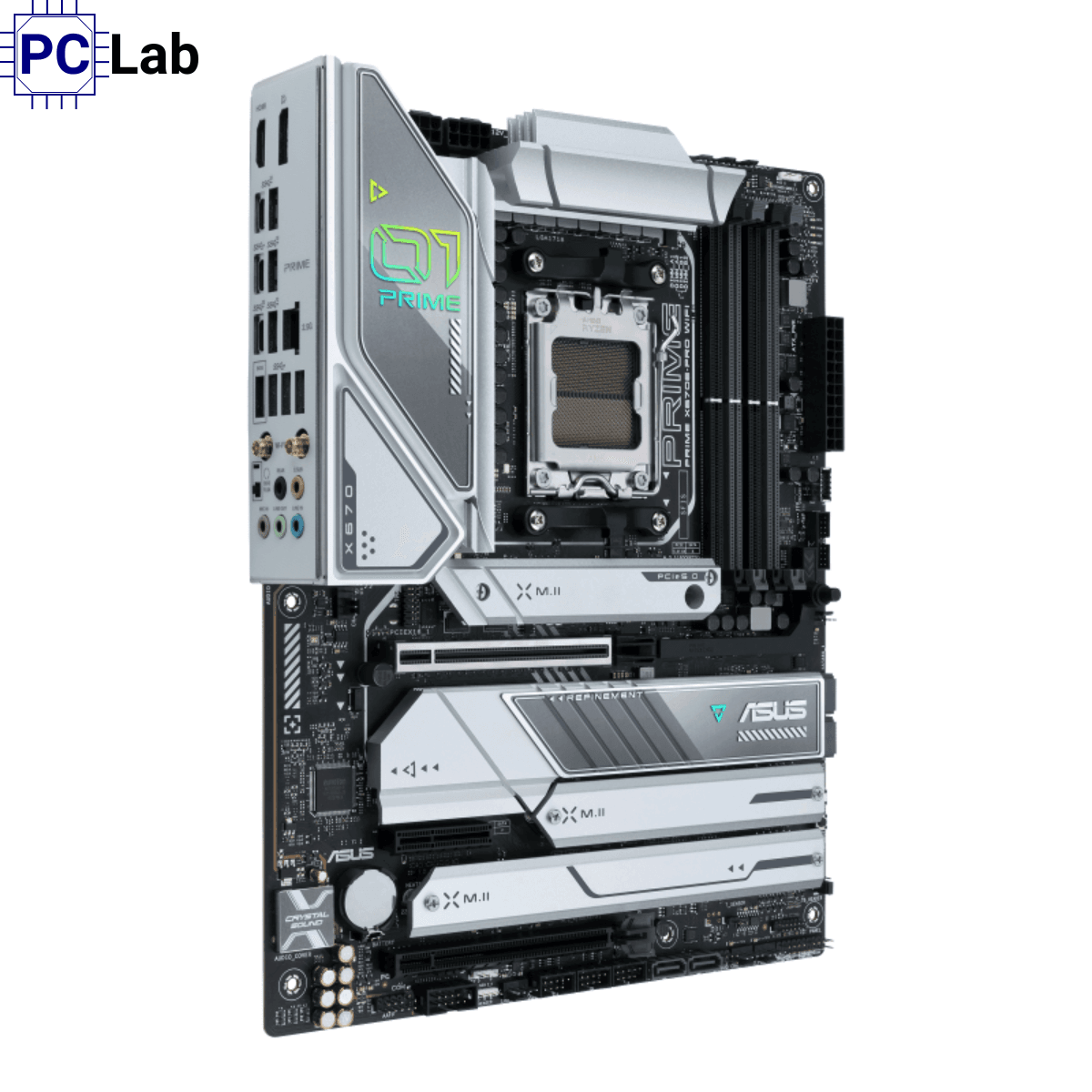

Thông số kỹ thuật Mainboard ASUS PRIME X670E-PRO WIFI DDR5
| Hạng mục | Thông số |
|---|---|
| Model | PRIME X670E-PRO WIFI |
| CPU | AMD Socket AM5, hỗ trợ Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Chipset | AMD X670 |
| Bộ nhớ | – 4 x DIMM, tối đa 192GB DDR5 – Hỗ trợ tốc độ: 4800 / 5000 / 5200 / 5400 / 5600 / 5800 / 6000(OC) / 6200(OC) / 6400(OC) / 6600(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7600(OC) / 7800(OC) / 8000+(OC) – Hỗ trợ ECC & Non-ECC, Un-buffered – Dual Channel, hỗ trợ AMD EXPO & OptiMem II |
| Đồ họa | 1 x DisplayPort (max 8K@60Hz), 1 x HDMI 2.1 (4K@60Hz) |
| Khe cắm mở rộng | CPU Ryzen 9000 & 7000: 1 x PCIe 5.0 x16 (x16 mode) CPU Ryzen 8000: 1 x PCIe 5.0 x16 (x8/x4 mode) Chipset X670: 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x4 slot |
| Lưu trữ | 4 x M.2 slots, 4 x SATA 6Gb/s – AMD RAIDXpert Technology hỗ trợ NVMe & SATA RAID 0/1/10 – M.2_2 chia băng thông với SATA6G_1&2 |
| Ethernet | 1 x Realtek 2.5Gb LAN, ASUS LANGuard |
| Wi-Fi & Bluetooth | Wi-Fi 6E 2×2 (802.11 a/b/g/n/ac/ax), 2.4/5/6GHz, Bluetooth v5.2 |
| USB | Rear (10 ports): 1 x USB 3.2 Gen 2×2 Type-C, 4 x USB 3.2 Gen 2 (3 Type-A + 1 Type-C), 5 x USB 3.2 Gen 1 (4 Type-A + 1 Type-C) Front (9 ports): 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen1 header (2 ports), 3 x USB 2.0 headers (6 ports) |
| Âm thanh | Realtek S1220A 7.1 HD Audio CODEC, hỗ trợ up to 32-bit/192kHz, Impedance sense, Internal Amplifier, Front Panel Jack-retasking, Power pre-regulator, Premium caps, Dedicated PCB layers, Audio cover, de-pop circuit |
| Cổng I/O phía sau | USB 3.2 Gen 2×2 Type-C, 4 x USB 3.2 Gen 2, 5 x USB 3.2 Gen1, DisplayPort, HDMI, Wi-Fi Module, 2.5Gb LAN, 5 x audio jacks, BIOS FlashBack™ button |
| Cổng I/O nội bộ | CPU Fan, CPU OPT Fan, AIO Pump, 4 x Chassis Fans, W_PUMP+, 24-pin Main, 2 x 8-pin CPU Power, 4 x M.2, 4 x SATA, USB headers, 2 x Addressable Gen2 RGB, 1 x AURA RGB, Clear CMOS, COM, CPU OV jumper, Front Panel Audio, Power button, SPI TPM, System Panel w/ Chassis intrude, Thermal Sensor, Thunderbolt header |
| Tính năng đặc biệt | ASUS 5X PROTECTION III (DIGI+ VRM, ESD, LANGuard, OV Protection, SafeSlot Core+, Stainless-Steel I/O) ASUS Q-Design (M.2 Q-Latch, PCIe Q-Release, Q-Connector, Q-DIMM, Q-LED, Q-Slot) Thermal Solution: M.2 & VRM heatsinks DIY: BIOS FlashBack™, Clear CMOS, ProCool, Pre-mounted I/O shield, SafeSlot, SafeDIMM Aura Sync: RGB & Addressable Gen2 headers |
| Phần mềm ASUS | Armoury Crate (AURA Sync, Fan Xpert 4 w/ AI Cooling II, Power Saving, Two-Way AI Noise Cancelation) AI Suite 3 (Easy Optimization, TPU, DIGI+ VRM, Turbo App, PC Cleaner), ASUS CPU-Z, DTS:X Ultra, MyAsus, Norton Trial, WinRAR, UEFI BIOS, CrashFree BIOS 3, EZ Flash 3 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Khả năng quản lý | WOL by PME, PXE |
| Phụ kiện đi kèm | 2 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi antenna, 2 x Rubber packages for M.2, 2 x Screw packages for M.2 SSD, 1 x Q-Connector, 1 x User guide |
| Hệ điều hành | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | ATX, 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
