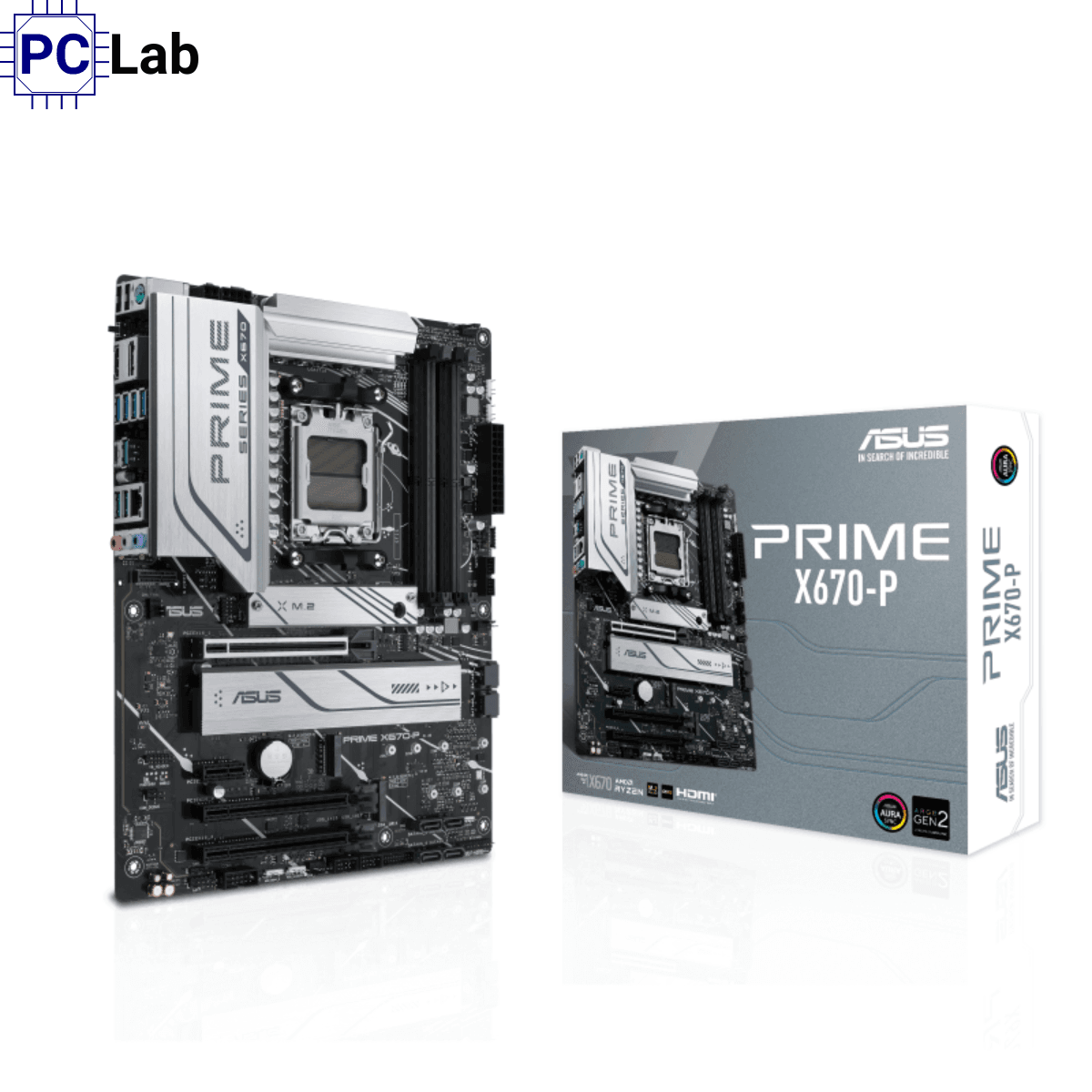

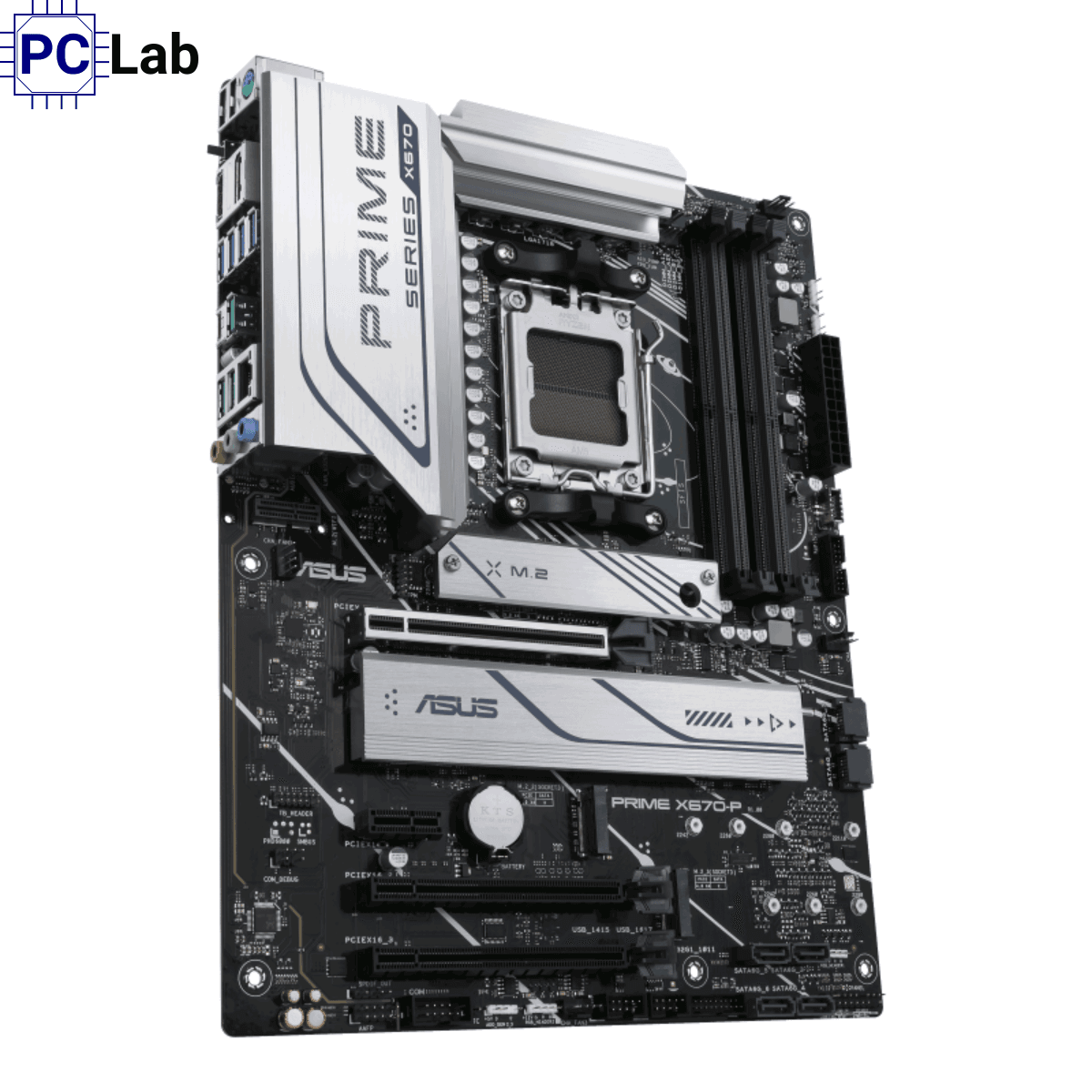

Thông số kỹ thuật Mainboard ASUS PRIME X670-P DDR5
| Hạng mục | Thông số |
|---|---|
| Model | PRIME X670-P |
| CPU | AMD Socket AM5, hỗ trợ Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Chipset | AMD X670 |
| Bộ nhớ | – 4 x DIMM, tối đa 192GB DDR5 – Hỗ trợ các tốc độ: 4800 / 5000 / 5200 / 5400 / 5600 / 5800 / 6000(OC) / 6200(OC) / 6400(OC) / 6600(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7600+(OC) – Hỗ trợ ECC & Non-ECC, Un-buffered – Dual Channel Architecture, hỗ trợ AMD EXPO (Overclocking) & OptiMem II |
| Đồ họa | – 1 x DisplayPort (max 8K@60Hz) – 1 x HDMI 2.1 (4K@60Hz) |
| Khe cắm mở rộng | CPU Ryzen 9000 & 7000: 1 x PCIe 4.0 x16 (x16 mode) CPU Ryzen 8000: 1 x PCIe 4.0 x16 (x8/x4 mode) Chipset X670: 2 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 3.0 x1 (chia băng thông với SATA6G_3/4) |
| Lưu trữ | CPU Ryzen 9000 & 7000: – M.2_1 PCIe 5.0 x4 (2242/2260/2280) – M.2_2 PCIe 4.0 x4 (2242/2260/2280/22110) CPU Ryzen 8000: – M.2_1 PCIe 4.0 x4, M.2_2 PCIe 4.0 x4/x2 (2242/2260/2280/22110) Chipset X670: – M.2_3 PCIe 4.0 x4, 6 x SATA 6Gb/s – Hỗ trợ AMD RAIDXpert2 RAID NVMe & SATA 0/1/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Không dây & Bluetooth | 1 x V-M.2 slot (Key E, PCIe), module Wi-Fi bán rời |
| USB | Rear (10 ports): 1 x USB 3.2 Gen 2×2 Type-C, 3 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 2 x USB 2.0 Front (9 ports): 1 x USB 3.2 Gen 1 Type-C, 2 x USB 3.2 Gen 1 headers (4 ports), 2 x USB 2.0 headers (4 ports) |
| Âm thanh | Realtek 7.1 HD Audio CODEC, hỗ trợ 24-bit/192kHz, Audio Shielding, Premium caps, Dedicated PCB layers, Front Panel Jack-retasking |
| Cổng I/O phía sau | 1 x USB 3.2 Gen 2×2 Type-C, 3 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 2 x USB 2.0, 1 x DisplayPort, 1 x HDMI, 1 x V-M.2 slot, 1 x 2.5Gb LAN, 3 x audio jacks, 1 x BIOS FlashBack™, 1 x PS/2 combo |
| Cổng I/O nội bộ | – 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 3 x Chassis Fans – 24-pin Main, 8+4-pin CPU Power – 3 x M.2 slots, 6 x SATA 6Gb/s – USB: 1 x 3.2 Gen1 Type-C, 2 x 3.2 Gen1 headers, 2 x USB 2.0 headers – 3 x Addressable Gen2 RGB, 2 x Aura RGB, Clear CMOS, COM, Front Panel Audio, S/PDIF, SPI TPM, System Panel, Thunderbolt™ header |
| Tính năng đặc biệt | ASUS 5X PROTECTION III (DIGI+ VRM, ESD, LANGuard, OV Protection, SafeSlot Core+, Stainless-Steel I/O) ASUS Q-Design (Q-Latch, Q-DIMM, Q-LED Core, Q-Slot) Thermal: M.2 & VRM heatsinks DIY: BIOS FlashBack™, ProCool Aura Sync: RGB & Addressable Gen2 headers |
| Phần mềm ASUS | Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4 AI Cooling II, Power Saving) AI Suite 3 (TurboV EVO, DIGI+ VRM, PC Cleaner) ASUS CPU-Z, Norton Trial, WinRAR, UEFI BIOS, CrashFree BIOS 3, EZ Flash 3 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Khả năng quản lý | WOL by PME, PXE |
| Phụ kiện đi kèm | 2 x SATA 6Gb/s cables, 1 x I/O Shield, 1 x Rubber Package for M.2, 2 x Screw Packages for M.2 SSD, 1 x User guide |
| Hệ điều hành | Windows 11, Windows 10 64-bit |
| Form Factor | ATX, 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
