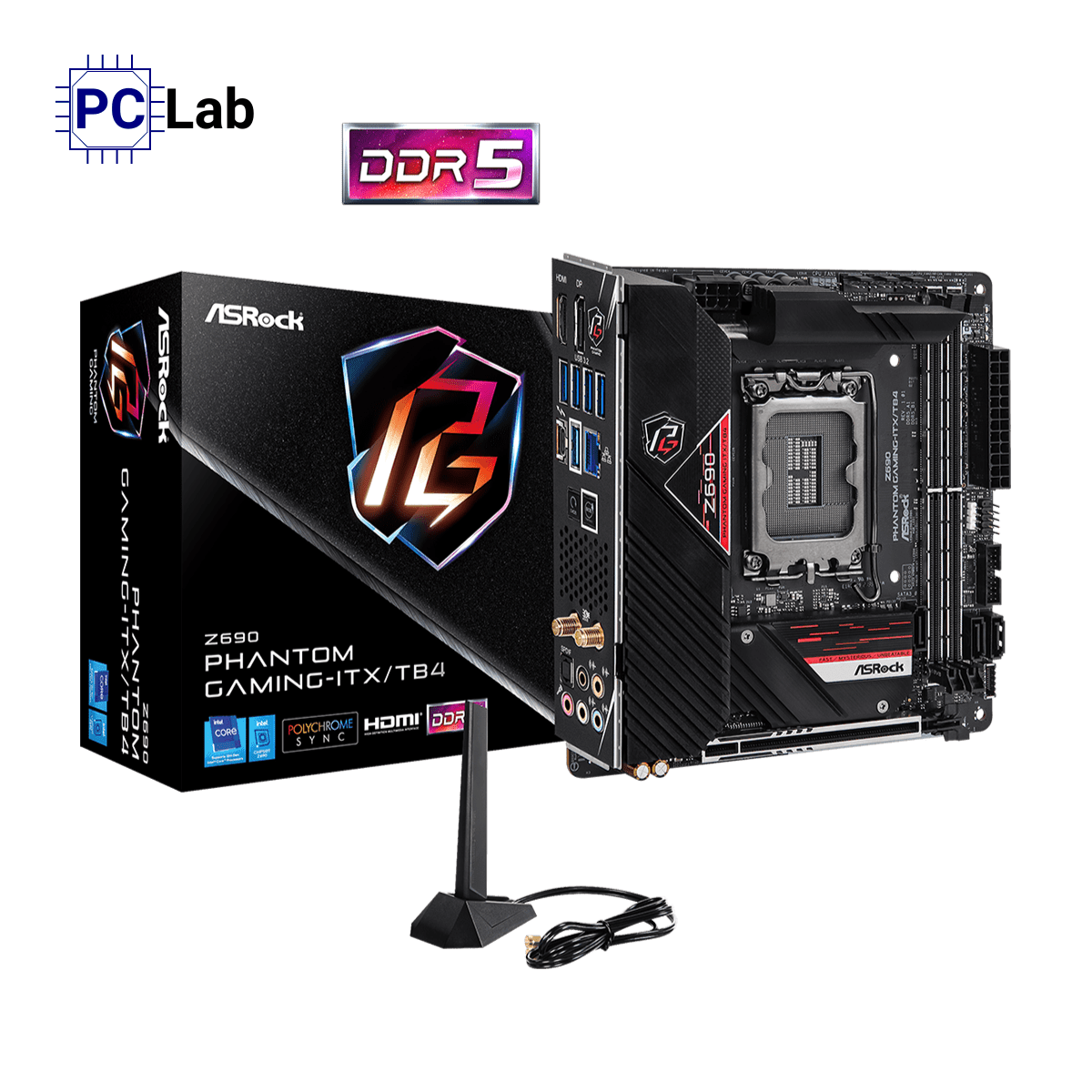

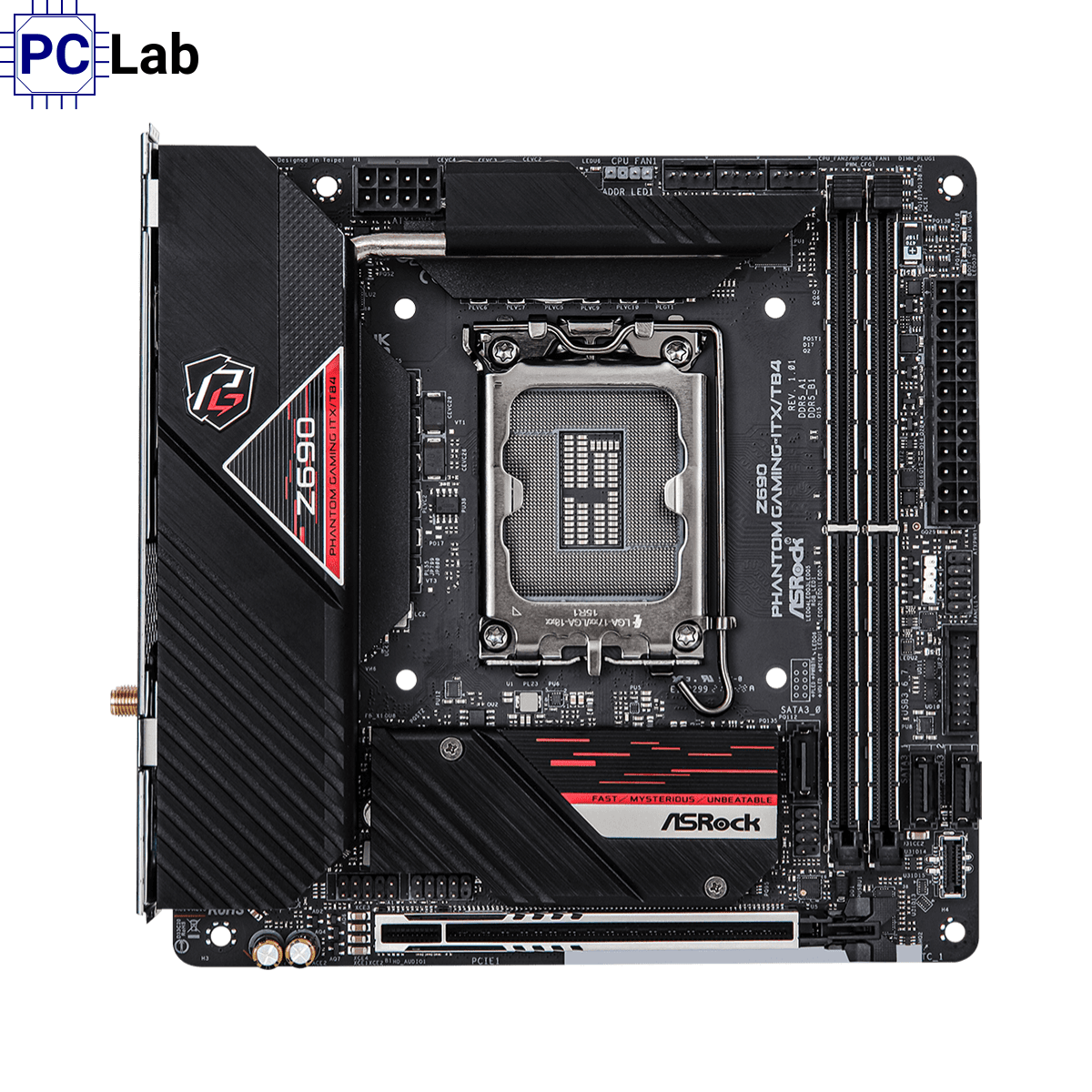

Thông số kỹ thuật Mainboard ASRock Z690 Phantom Gaming-ITX/TB4 DDR5
| Hạng mục | Thông tin chi tiết |
|---|---|
| Model | Z690 Phantom Gaming-ITX/TB4 |
| Tính năng nổi bật | ASRock Super Alloy: – Premium Power Choke, 105A Smart Power Stage (SPS), Nichicon 12K Black Caps – I/O Armor, Matte Black PCB, High Density Glass Fabric, 10 Layer PCB – USB 4.0 Thunderbolt™ 4 Type-C Port (40 Gb/s) – USB 3.2 Gen2 Type-A Port (10 Gb/s), Front Panel Type-C USB 3.2 Gen2x2 Header (20 Gb/s) – Steel Slot, Full Coverage M.2 Heatsink, Hyper M.2 PCIe Gen4x4, POST Status Checker, Full Spike Protection, Live Update & APP Shop, Auto Driver Installer |
| CPU | – Hỗ trợ Intel® Core™ thế hệ 12, 13, 14 (LGA1700) – Digi Power, 11 pha nguồn – Hỗ trợ Intel® Hybrid Technology & Turbo Boost Max 3.0 |
| Chipset | Intel® Z690 |
| RAM | – DDR5 kênh đôi, 2 khe DIMM – Hỗ trợ DDR5 non-ECC up to 6400+(OC) – Dung lượng tối đa: 96GB – Hỗ trợ Intel® XMP 3.0, 15μ Gold Contacts |
| BIOS | – 256Mb AMI UEFI GUI đa ngôn ngữ – ACPI 6.0, SMBIOS 2.7 – Multi-voltage adjustment: CPU CORE/Cache, CPU GT, VCCIN_AUX, VDD_CPU, VDD_IMC, +0.82V PCH, +1.05V PCH, +1.8V PROC, +1.05V PROC, VDD, VDDQ, VPP |
| Đồ họa tích hợp | – Intel® Xe Graphics Architecture (Gen 12) – Triple monitor support: HDMI 2.1 (4K60Hz), DisplayPort 1.4 (8K60/5K120), Thunderbolt™ 4 (8K60) – HDCP 2.3 |
| Âm thanh | – 7.1 CH HD Audio (Realtek ALC1220) – Premium Blu-ray Audio, Surge Protection, PCB isolation, Nahimic Audio, Gold Audio Jacks |
| LAN | – 2.5 Gigabit LAN (Killer E3100G) – Killer DoubleShot™ Pro, Wake-On-LAN, ESD Protection, 802.3az |
| Wi-Fi / Bluetooth | – 802.11ax Wi-Fi 6E, Dual-Band 2×2 160MHz + 6GHz band (Win11) – Bluetooth 5.3, MU-MIMO, Killer LAN Software support |
| Khe cắm mở rộng (Slots) | – 1 x PCIe 5.0 x16 (CPU, hỗ trợ riser card mở rộng x16 → 2 x8) – 1 x Vertical M.2 Key E cho Wi-Fi/BT – 15μ Gold contact PCIe |
| Lưu trữ (Storage) | – 1 x Hyper M.2 (M2_1, PCIe Gen4x4 2280) – 1 x Hyper M.2 (M2_2, PCIe Gen4x4 & SATA 2280) – 3 x SATA3 6Gb/s – Hỗ trợ NVMe boot, Intel Optane H Series (M2_2), VMD, ASRock U.2 Kit |
| RAID | – SATA: RAID 0,1,5,10 – M.2 NVMe: RAID 0,1,5* (*cần M.2 NVMe expansion card) |
| USB & Headers | – CPU Fan, CPU/WP Fan, Chassis Fan – 24-pin ATX, 8-pin 12V – Front Panel Audio (Gold) – USB 2.0 Header (2 ports), USB 3.2 Gen1 Header (2 ports), Front Type-C USB 3.2 Gen2x2 Header – LED RGB / ARGB support |

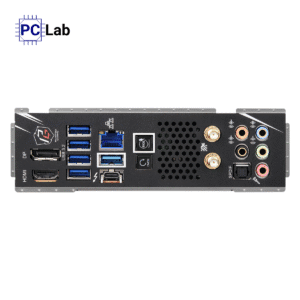

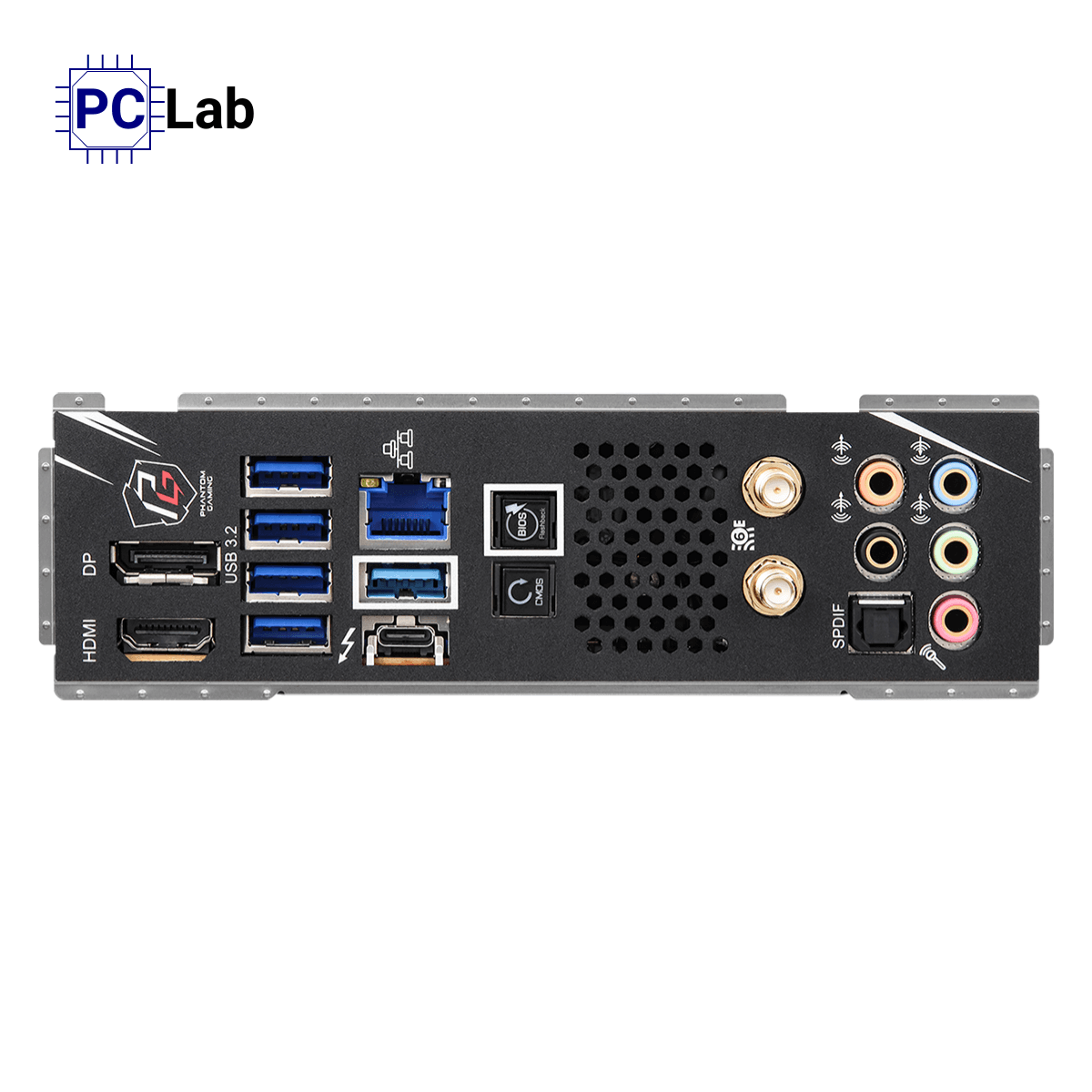

| I/O sau (Rear I/O) | – 2 x Antenna, 1 x HDMI, 1 x DP 1.4, 1 x Optical SPDIF – 4 x USB 3.2 Gen2 Type-A (10Gb/s), 1 x USB 3.2 Gen1, 1 x USB 4.0 / Thunderbolt™ 4 Type-C (40Gb/s) – 1 x RJ-45 LAN, Clear CMOS, BIOS Flashback – HD Audio: Rear Speaker / Center / Bass / Line in / Front / Mic (Gold) |
| Phần mềm & UEFI | – ASRock Phantom Gaming Tuning, Polychrome SYNC, EZ Mode, Full HD UEFI, My Favorites, Auto Driver Installer, Instant Flash, Easy RAID Installer |
| Phụ kiện đi kèm | – 2 x SATA Cables, 1 x Wi-Fi antenna, 2 x M.2 Screws |
| Giám sát phần cứng | – Fan Tachometer & Multi-Speed Control, Quiet Fan Auto, CASE OPEN detection – Voltage monitoring: CPU Vcore, VDD_CPU, VCCIN_AUX, +1.05V PCH, +1.05V PROC, +12V/+5V/+3.3V |
| Kích thước / Thiết kế | – Mini-ITX 17.0 x 17.0 cm, 10 Layer PCB |
| Hệ điều hành hỗ trợ | Windows® 10 64-bit / Windows® 11 64-bit |
| Chứng nhận | FCC, CE, ErP/EuP ready |
