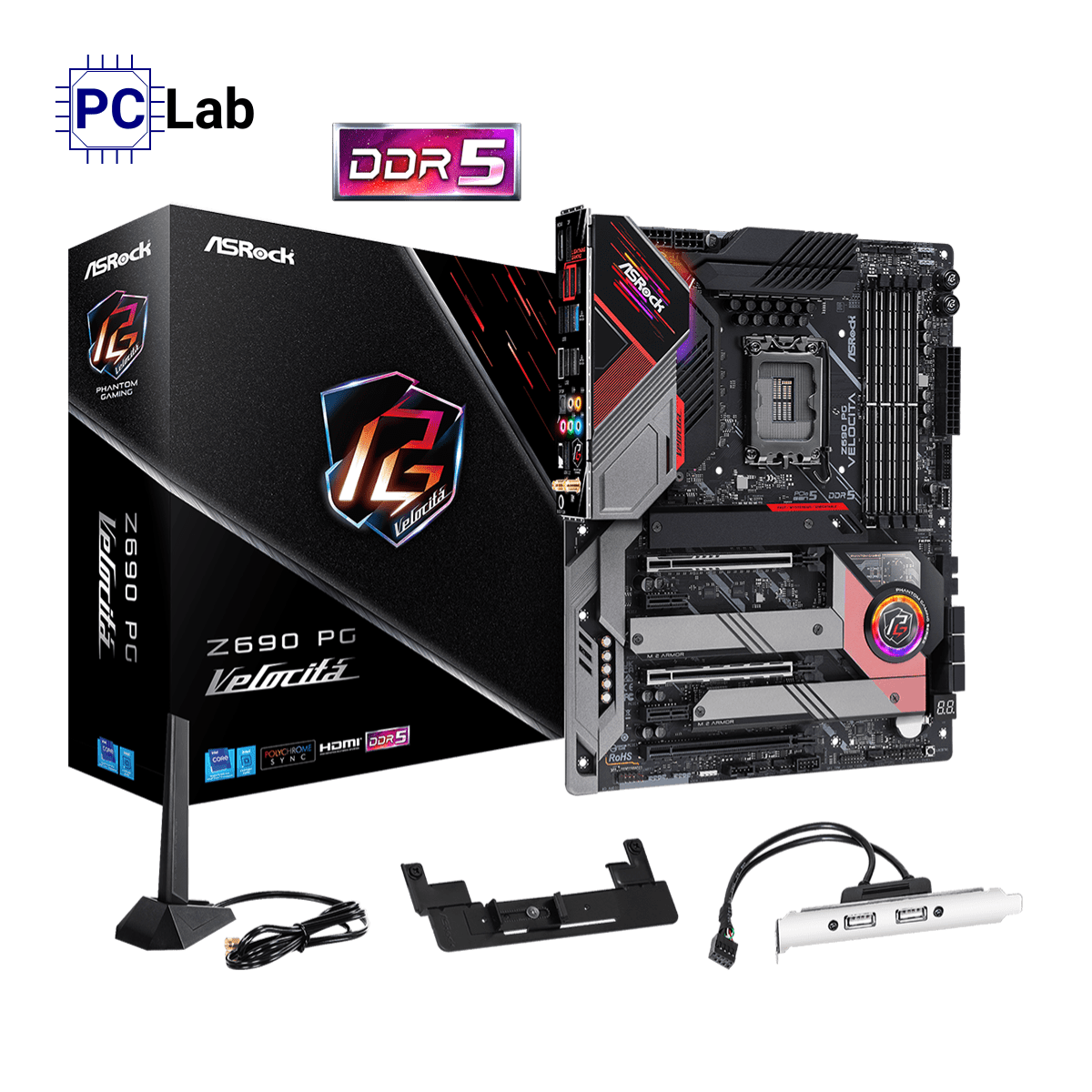

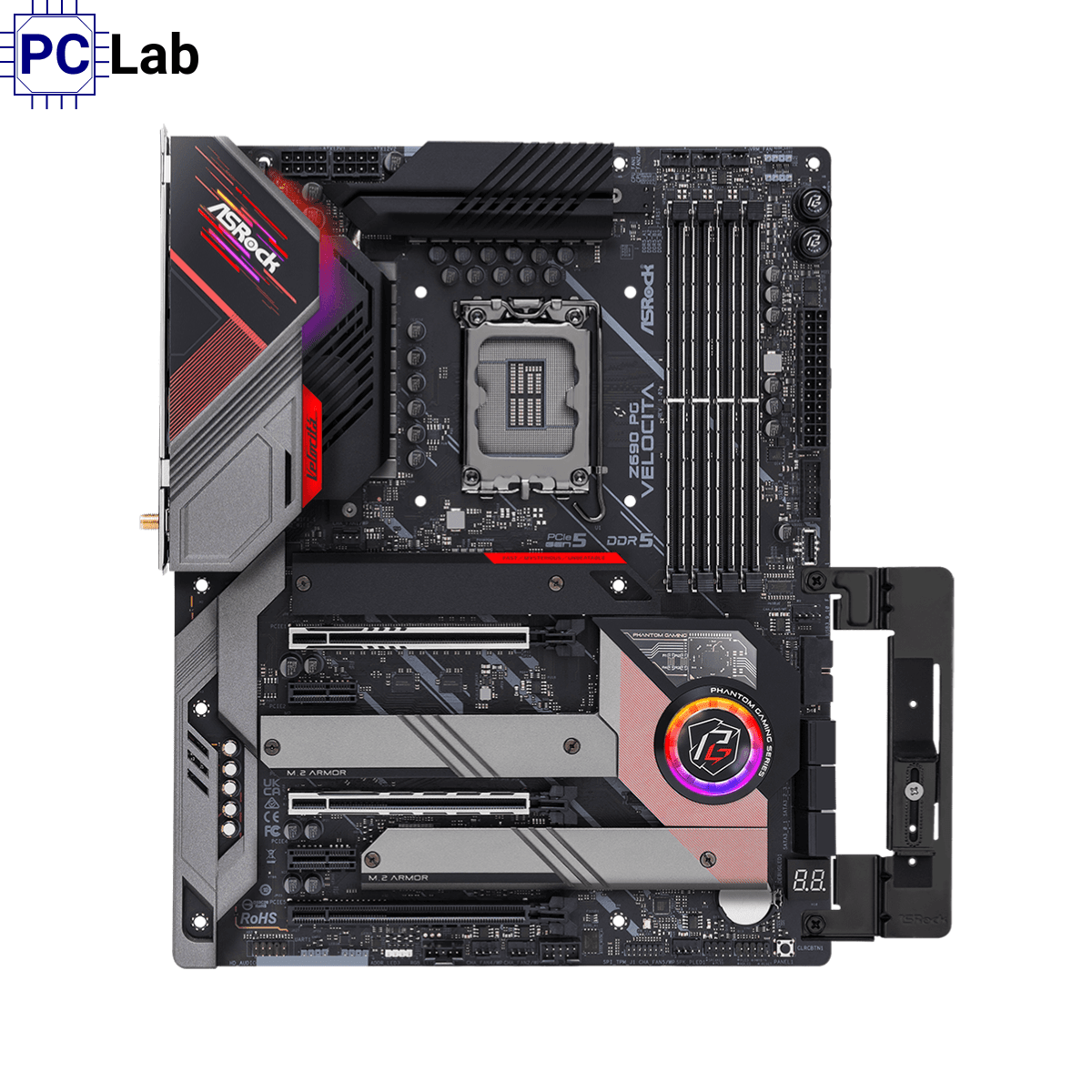

Thông số kỹ thuật Mainboard ASRock Z690 PG Velocita DDR5
| Hạng mục | Thông số kỹ thuật |
|---|---|
| Model | Z690 PG Velocita |
| Tính năng độc đáo | – ASRock USB 3.2 Gen2: Type-C Front Panel 20 Gb/s, Type-A 10 Gb/s, Type-C 10 Gb/s – ASRock Super Alloy: XXL Aluminum Heatsink, Premium Power Choke, 60A SPS, Premium Memory Alloy Choke (giảm 70% tổn hao), Nichicon 12K Black Caps, I/O Armor, Matte Black PCB, High Density Glass Fabric, 8 Layer PCB, 2oz Copper PCB – Killer 2.5G LAN, 802.11ax Wi-Fi 6E, Killer DoubleShot™ Pro – ASRock Auto Driver Installer, Steel Slots, Full Coverage M.2 Heatsink, Blazing M.2 PCIe Gen5x4 – ASRock Ultra USB Power, Full Spike Protection, Live Update & APP Shop |
| CPU | – Hỗ trợ Intel® Core™ thế hệ 14, 13, 12 (LGA1700) – Digi Power, 17 pha nguồn – Hỗ trợ Intel® Hybrid Technology, Turbo Boost Max 3.0, Hyper BCLK Engine V |
| Chipset | Intel® Z690 |
| Bộ nhớ | – DDR5 hai kênh, 4 khe DIMM – Hỗ trợ DDR5 non-ECC up to 6400+(OC) – Dung lượng tối đa 192GB – Hỗ trợ Intel® XMP 3.0 – 15μ Gold Contact ở khe DIMM |
| BIOS | – 256Mb AMI UEFI, giao diện đa ngôn ngữ – ACPI 6.0, SMBIOS 2.7 – Điều chỉnh điện áp: CPU Core/Cache, CPU GT, DRAM, VCCIN_AUX, PCH, +1.8V PROC, +1.05V PROC |
| Đồ họa | – Intel® Xe Graphics Gen 12 – Dual output: HDMI 2.1 và DisplayPort 1.4 – Hỗ trợ HDMI 4K@60Hz, DisplayPort 8K@60Hz/5K@120Hz, HDCP 2.3 |
| Âm thanh | – 7.1 CH HD Audio (Realtek ALC1220) – Blu-ray Audio, Pure Power-In, Direct Drive, PCB Isolate Shielding, Impedance Sensing, Gold Audio Jacks 15μ, Nahimic Audio |
| LAN & WLAN | – 1 x 2.5G LAN Killer E3100G (DoubleShot™ Pro, Killer LAN Software) – 1 x 1G LAN Intel® I219V – Wi-Fi 6E 802.11ax, Dual-Band 2×2, Bluetooth 5.3, MU-MIMO |
| Khe cắm | – 1 x PCIe 5.0 x16 (CPU, 15μ Gold) – 1 x PCIe 4.0 x16 (x4) – 1 x PCIe 3.0 x16 (x2) – 2 x PCIe 3.0 x1 – 1 x Vertical M.2 Key E (WiFi/BT) – Hỗ trợ AMD CrossFire |
| Lưu trữ | – CPU: 1 x M.2 PCIe Gen4x4 (M2_1), 1 x Blazing M.2 PCIe Gen5x4 (M2_4) – Chipset: 1 x Ultra M.2 SATA/PCIe Gen3x4 (M2_2), 1 x Hyper M.2 PCIe Gen4x4 (M2_3) – 6 x SATA3 6 Gb/s – Hỗ trợ Intel® Optane, VMD, U.2 Kit, NVMe boot |
| RAID | – RAID 0/1/5/10 (SATA), RAID 0/1/5 (NVMe) |
| Kết nối & Fan | – SPI TPM, RGB/Addressable LED Headers, CPU/Chassis/Water Pump/VRM/MOS Fan Connectors – 24 pin ATX, 2 x 8 pin 12V – Front Panel Type-C USB 3.2 Gen2x2 20 Gb/s, USB 3.2 Gen1/2 Headers, Thunderbolt™ AIC, Clear CMOS, Dr. Debug, Power & Reset Button with LED |

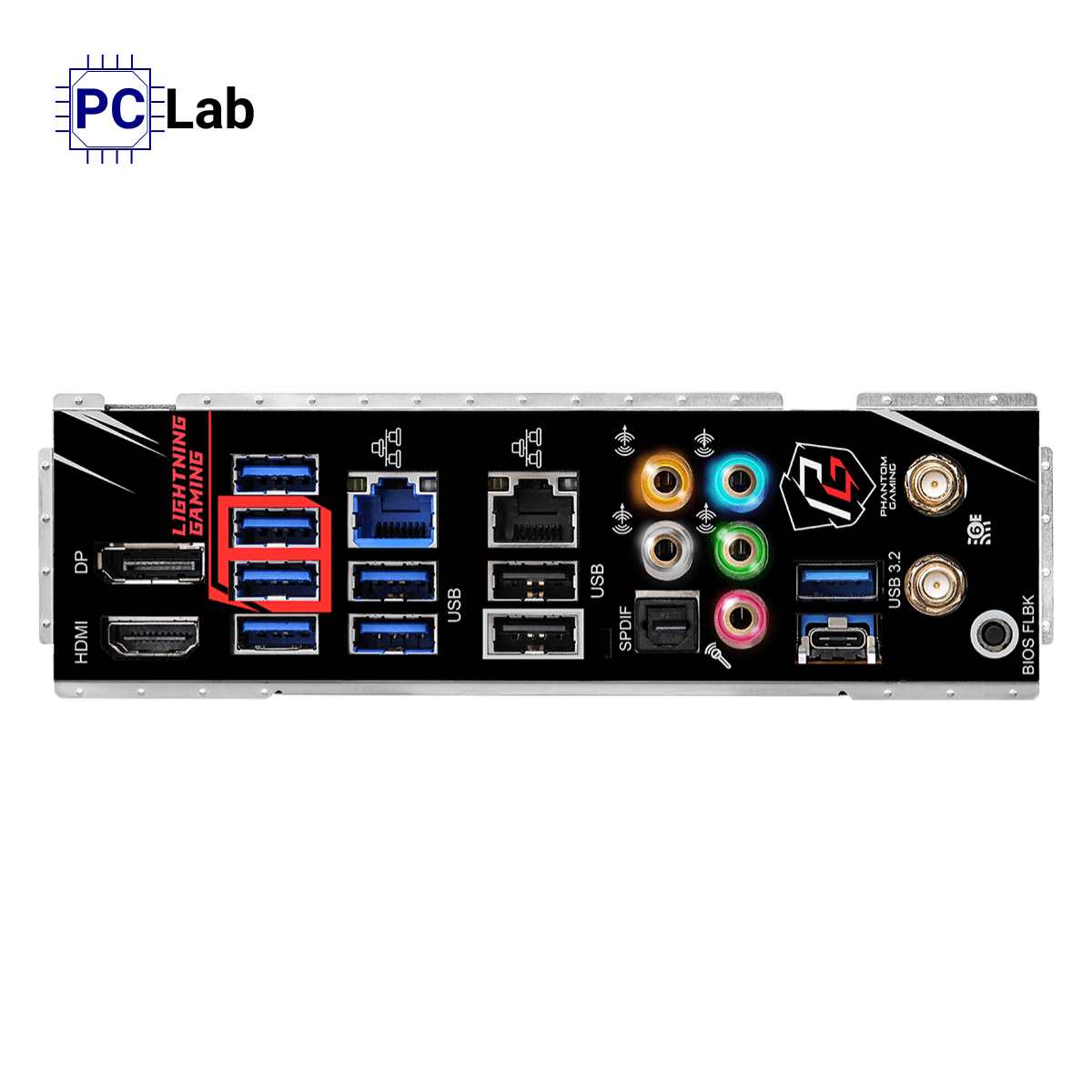

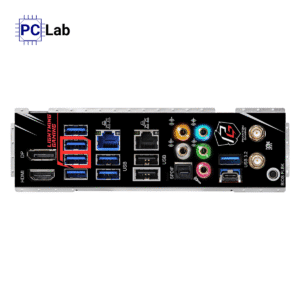

| Cổng I/O phía sau | – 2 x Antenna, HDMI, DisplayPort 1.4, Optical SPDIF, USB 3.2 Gen2 Type-A/C, USB 3.2 Gen1 x6, USB 2.0 x2 – 2 x RJ-45 LAN, BIOS Flashback – HD Audio Gold Jacks với LED |
| Phần mềm & UEFI | – Phantom Gaming Tuning, Killer Control Center, Polychrome SYNC – EZ Mode, Full HD UEFI, Auto Driver Installer, My Favorites, Instant Flash, Easy RAID Installer |
| Phụ kiện | – 4 x SATA Cables, Graphics Card Holder, Wireless USB Bracket, 3010 & 4010 Cooling Fans with Brackets, Wi-Fi Antenna, 3 x M.2 Screws, 3 x M.2 Standoffs |
| Giám sát phần cứng | – Tachometer: CPU/Chassis/Water Pump/VRM/MOS Fans – Fan Multi-Speed & Auto Control – Giám sát điện áp: CPU Vcore, DRAM, PCH, VCCIN_AUX, VCCSA, +12V, +5V, +3.3V |
| Kích thước & PCB | ATX 30.5 x 24.4 cm, 8 Layer PCB, 2oz Copper |
| Hệ điều hành | Windows® 10 / 11 64-bit |
| Chứng nhận | FCC, CE, ErP/EuP, CEC Tier II ready |
