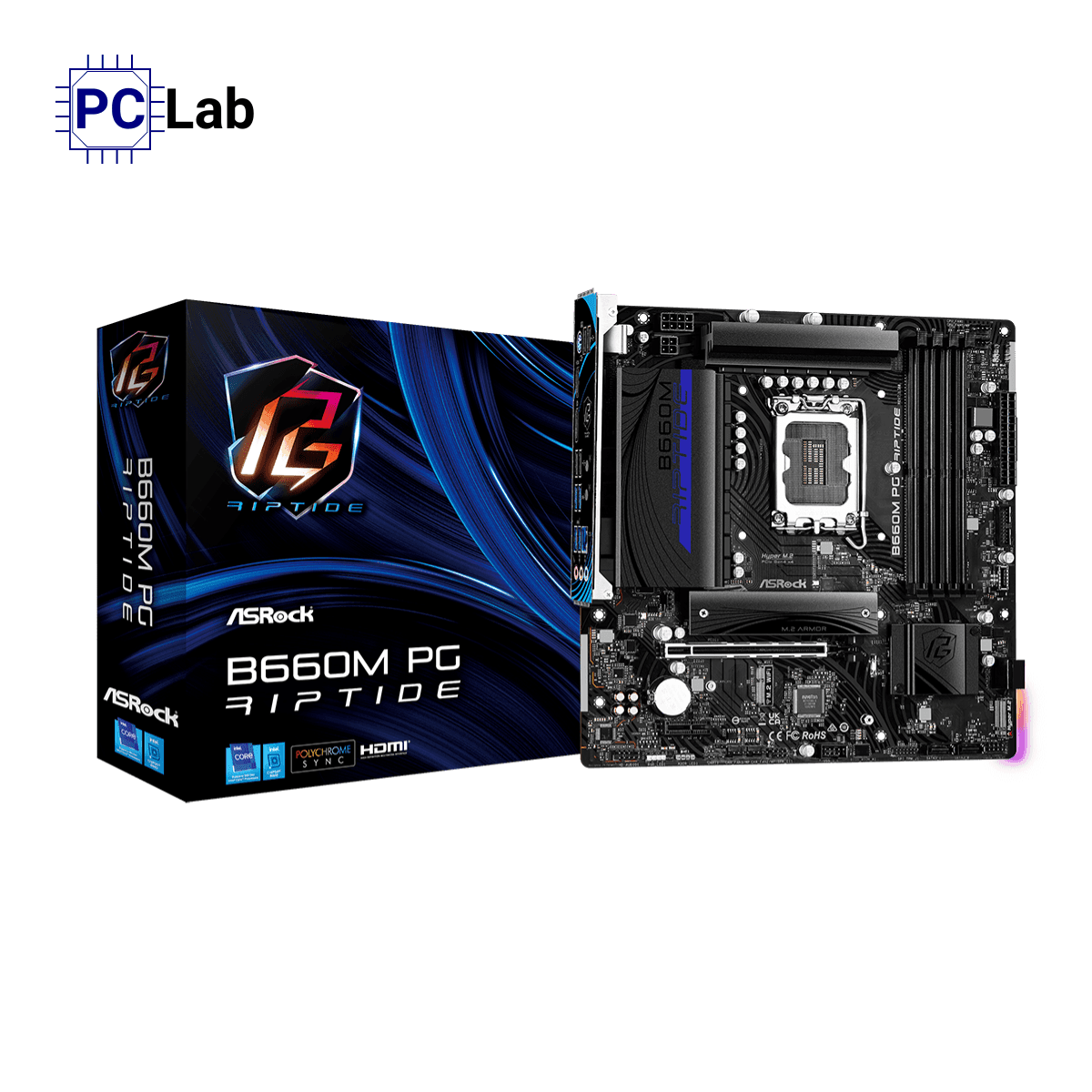

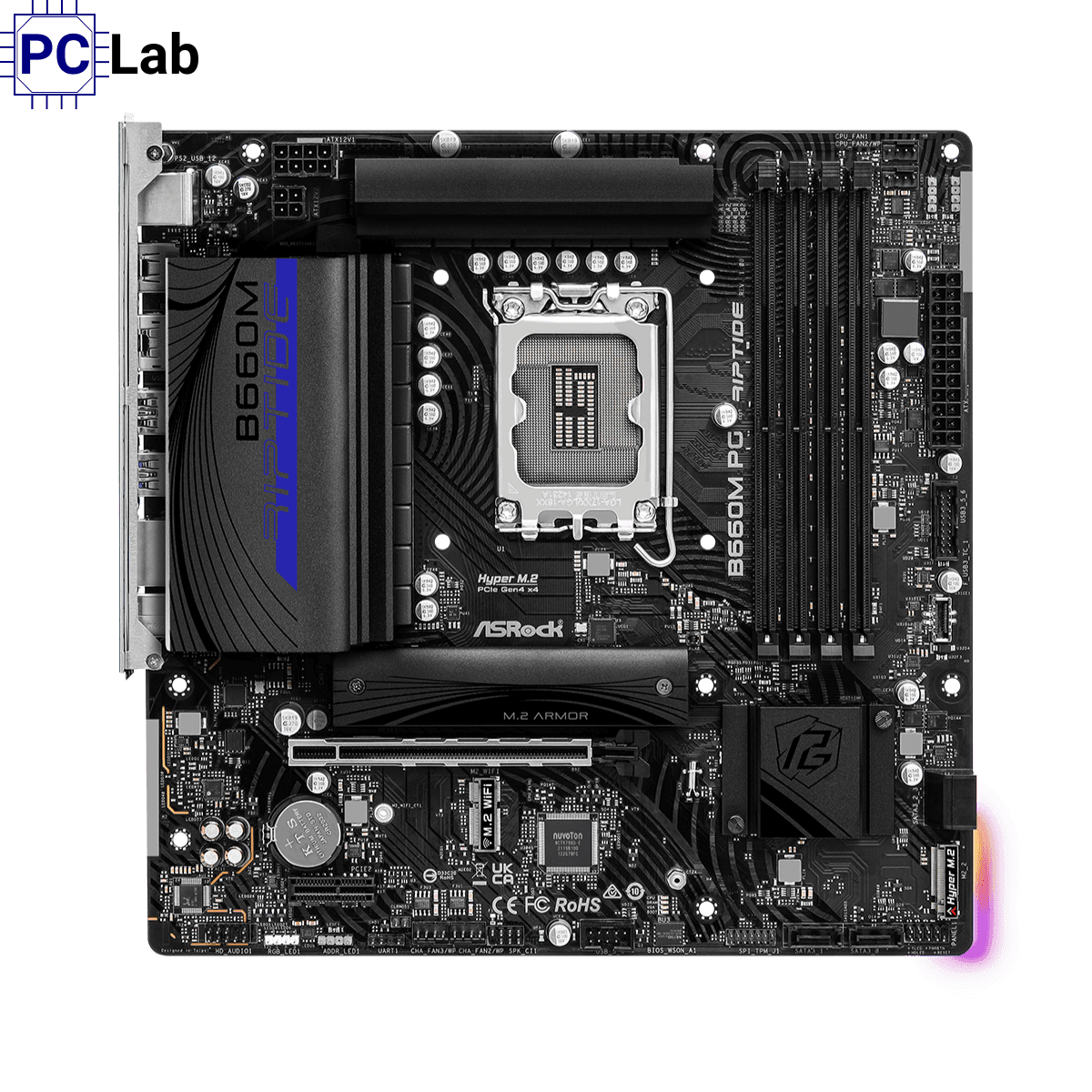

Thông số kỹ thuật Mainboard ASRock B660M PG Riptide DDR4
| Hạng mục | Thông tin chi tiết |
|---|---|
| Model | B660M PG Riptide |
| Tính năng nổi bật | ASRock Super Alloy: – Premium Power Choke, Matte Black PCB, High Density Glass Fabric PCB – Intel® 4-Layer Memory POOL (Planes on Outer Layers) – Steel Slot, Hyper M.2 (PCIe Gen4x4), Full Coverage M.2 Heatsink, POST Status Checker (PSC) – Full Spike Protection (USB/Audio/LAN) – Live Update & APP Shop, Auto Driver Installer – 2.5G LAN |
| CPU | – Hỗ trợ Intel® Core™ thế hệ 12, 13, 14 (LGA1700) – Digi Power, 15 pha nguồn – Hỗ trợ Intel® Hybrid Technology & Turbo Boost Max 3.0 |
| Chipset | Intel® B660 |
| RAM | – DDR4 kênh đôi, 4 khe DIMM – Hỗ trợ DDR4 non-ECC up to 5333+(OC) – Hỗ trợ ECC UDIMM (chạy non-ECC) – Dung lượng tối đa: 128GB |
| BIOS | – 256Mb AMI UEFI GUI đa ngôn ngữ – ACPI 6.0, SMBIOS 2.7 – Multi-voltage adjustment: CPU Core/Cache, Load-Line Calibration, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH |
| Đồ họa tích hợp | – Intel® Xe Graphics Architecture (Gen 12) – HDMI 2.1: 4K60Hz, DisplayPort 1.4 DSC: 8K60Hz / 5K120Hz – Hỗ trợ HDCP 2.3 |
| Âm thanh | – 7.1 CH HD Audio (Realtek ALC897) – Surge Protection, Nahimic Audio |
| LAN | – 1 x 2.5G LAN (Dragon RTL8125BG) – Hỗ trợ Phantom Gaming LAN Software, Smart Bandwidth Control, Wake-On-LAN, ESD Protection, Energy Efficient Ethernet 802.3az, PXE |
| Khe cắm mở rộng (Slots) | – 1 x PCIe 4.0 x16 (CPU) – 1 x PCIe 3.0 x1 (chipset) – 1 x M.2 Key E cho Wi-Fi/BT (Intel CNVi) – Hỗ trợ AMD CrossFire™ |
| Lưu trữ (Storage) | – 1 x Hyper M.2 (M2_1, PCIe Gen4x4, 2280) – 1 x Hyper M.2 (M2_2, PCIe Gen4x4, 2280, hỗ trợ Intel Optane) – 4 x SATA3 6Gb/s – Hỗ trợ NVMe boot & ASRock U.2 Kit |
| Hỗ trợ RAID | – SATA: RAID 0,1,5,10 |
| USB & Headers | – 1 x CPU Fan, 1 x CPU/Water Pump Fan, 3 x Chassis/Water Pump Fan – 24-pin ATX, 8-pin + 4-pin 12V, Front Panel Audio – USB 2.0 Header (2 ports), USB 3.2 Gen1 Header (2 ports), Front Type-C USB 3.2 Gen1 Header – Hỗ trợ LED RGB / ARGB |

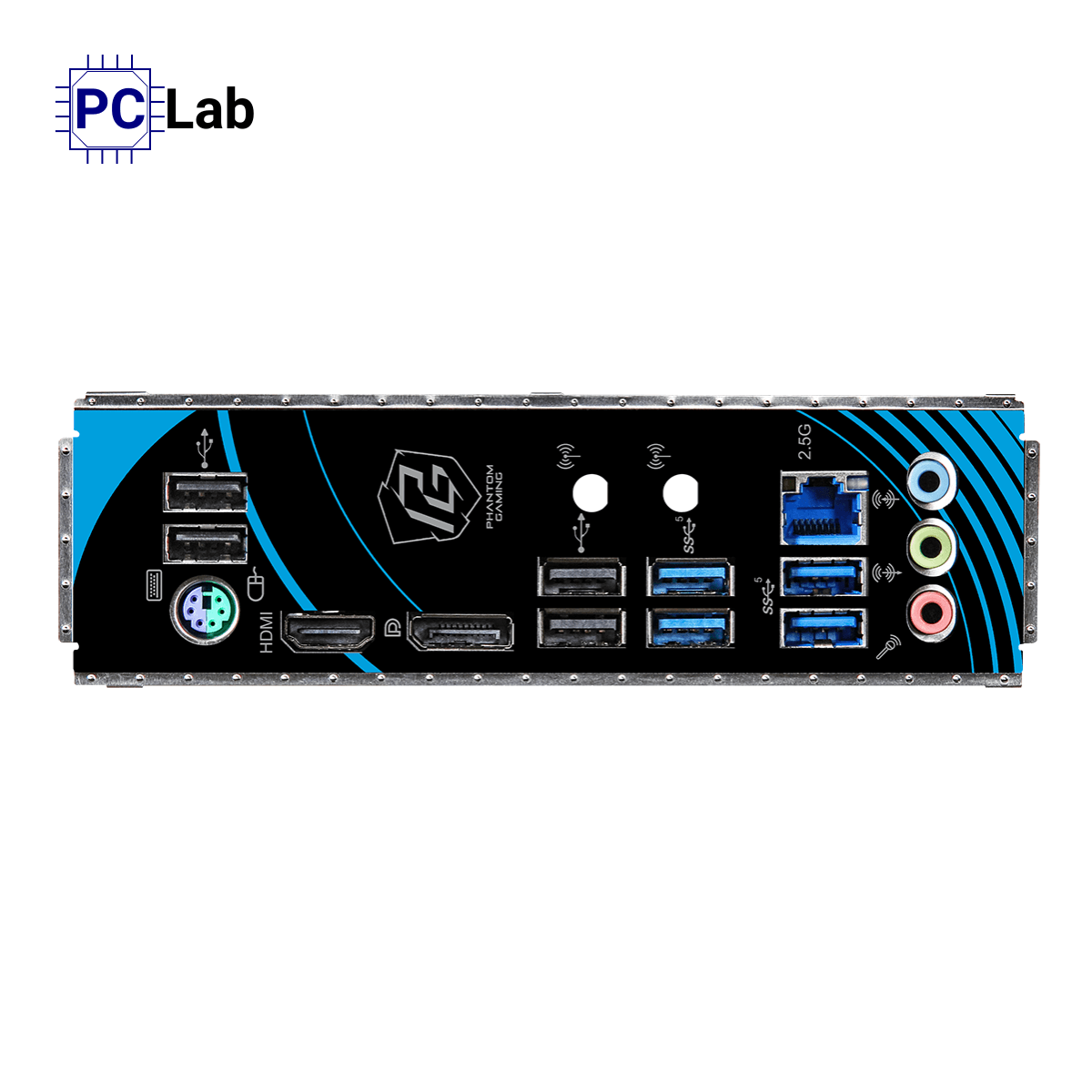

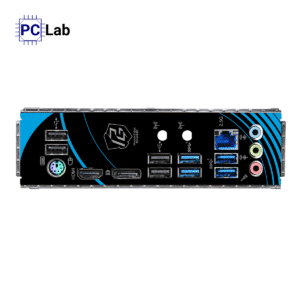

| I/O sau (Rear I/O) | – 2 x Antenna Mounts, 1 x PS/2, 1 x HDMI, 1 x DisplayPort 1.4 – 4 x USB 3.2 Gen1, 4 x USB 2.0 – 1 x RJ-45 LAN, HD Audio: Line in / Front / Mic |
| Phần mềm & UEFI | – ASRock Phantom Gaming Tuning, EZ Mode, Full HD UEFI, My Favorites, Auto Driver Installer, Instant Flash, Easy RAID Installer |
| Phụ kiện đi kèm | – 2 x SATA Cables, 2 x M.2 Screws |
| Giám sát phần cứng | – Fan Tachometer & Multi-Speed Control, Quiet Fan Auto, CASE OPEN detection – Voltage monitoring: CPU Vcore, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +12V/+5V/+3.3V |
| Kích thước / Thiết kế | – Micro ATX 24.4 x 24.4 cm, Solid Capacitor design |
| Hệ điều hành hỗ trợ | Windows® 10 64-bit / Windows® 11 64-bit |
| Chứng nhận | FCC, CE, ErP/EuP ready |
